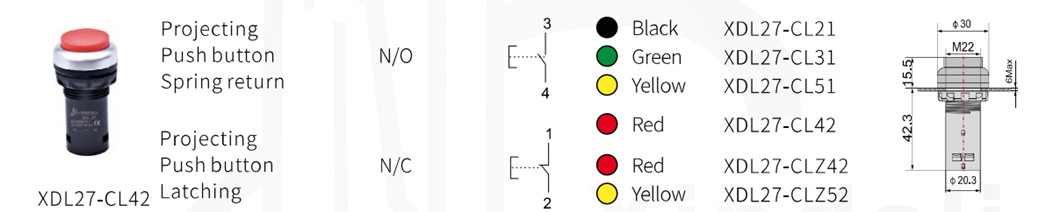

XDL27-CL42 Waterproof Projecting Return Red Button Waterproof Pushbutton Switch
Inquire NowDescription
The XDL27-CL42 Waterproof Projecting Return Red Button Waterproof Pushbutton Switch is an essential component for controlling electrical circuits in various applications. Designed to operate safely in harsh environments, this switch can handle AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V. The robust construction features a main body made from zinc alloy along with high-grade anti-flame plastic, ensuring durability and safety. The special silver alloy contacts provide excellent resistance to electrical erosion, enhancing longevity and reliability. This switch is suitable for signaling, interlocking, and emergency applications, making it an ideal choice for both industrial and commercial use. Additionally, all products comply with GB/T14048.1 and IEC60947-5-1 standards, and are certified by CE, ISO 9001, ROHS, and UL, ensuring high quality and safety standards.
Specifications
| Parameter | Pushbutton | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushes | Brightness |
| Electrical Life | 500×10000 pushes | Continuous Working Life |
Additional Information
- Brightness: 60cd/m2
- Continuous Working Life: 10x10000h
