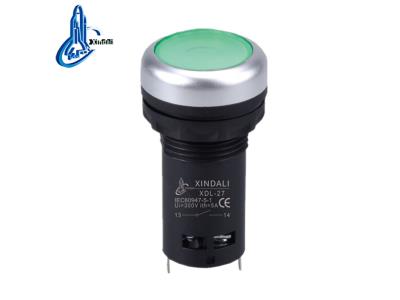

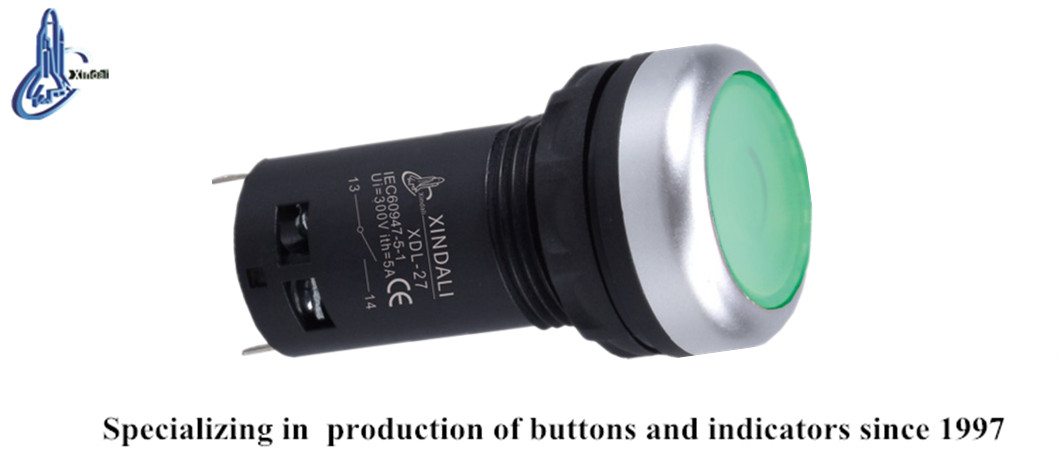

XDL27-CW3361 22mm Indicator LED Pilot Light Flush 12V Pushbutton Switch
Inquire NowDescription
The XDL27-CW3361 22mm Indicator LED Pilot Light Flush 12V Pushbutton Switch is a robust and versatile component designed for controlling electrical circuits. This high-quality push button series is capable of managing AC voltage up to 660V and DC voltage below 400V, making it suitable for a wide range of applications, including signal control and interlocking purposes. Its body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and reliability in various environments.
This product also features a special silver alloy contact that boasts exceptional anti-electrical erosion properties. The integrated signal lamp series can operate efficiently with electrical appliances at AC voltages up to 380V, providing clear indication signals for warning and emergency situations. The XDL27-CW3361 adheres to stringent quality standards, being CE, ISO9001, ROHS, and UL certified, ensuring safety and compliance for users.
Specifications
| Parameter | Pushbutton Switch | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 Pushbutton | Brightness |
| Electrical Life | 500×10000 Pushbutton | Continuous Working Life |
Additional Information
- This pushbutton is ideal for controlling various electrical signals, making it suitable for industrial and commercial applications.
- Ensure proper installation to enjoy the full benefits of its robust features.
