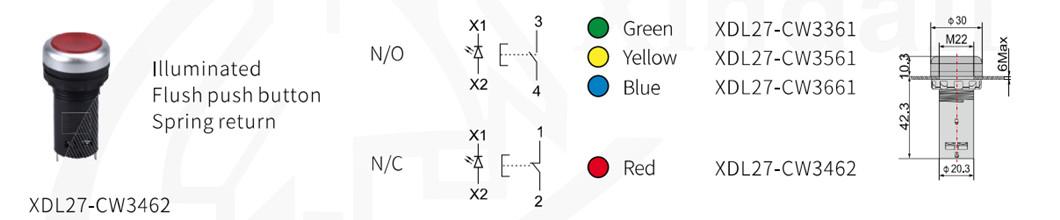

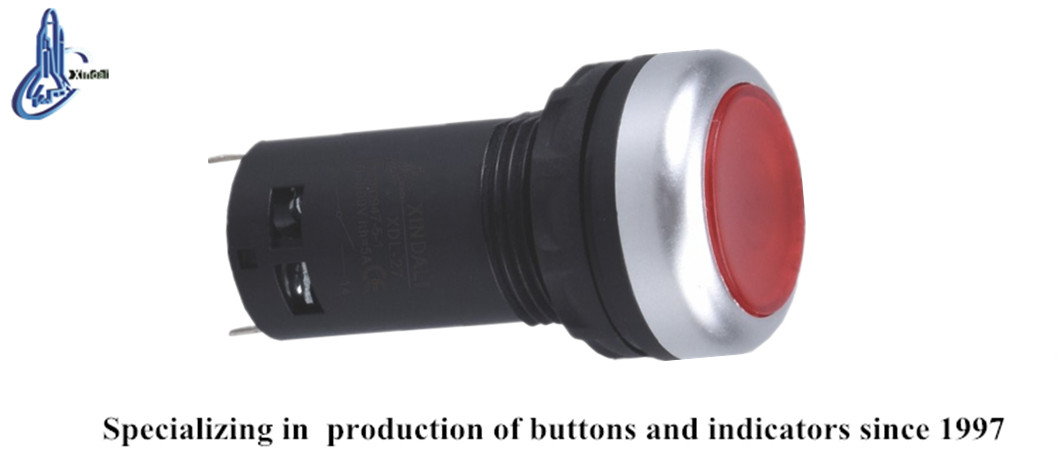

XDL27-CW3462 Electric Indicator Pushbutton Waterproof Push Button Switch
Inquire NowDescription
The XDL27-CW3462 Electric Indicator Pushbutton Switch is a high-performance, waterproof push button switch designed for versatility in electrical applications. With the ability to control circuits of AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, it is perfect for signaling and interlocking purposes. The robust construction features a zinc alloy body combined with high-grade anti-flame plastic, ensuring durability and safety. The contacts are made from a specialized silver alloy, providing exceptional resistance to electrical erosion. Ideal for indicating signals, warning signals, and emergency signals, this switch is compliant with GB/T14048.1 and IEC60947-5-1 standards and has obtained CE, ISO9001, ROHS, and UL certifications.
Specifications
| Parameter | Pushbutton | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 (pushbutton) | Brightness |
| Electrical Life | 500×10000 (pushbutton) | Continuous Working Life |
Additional Information
- Complies with international safety and quality standards.
- Suitable for a variety of electrical applications, including industrial and commercial use.
- Easy installation and reliable performance.
