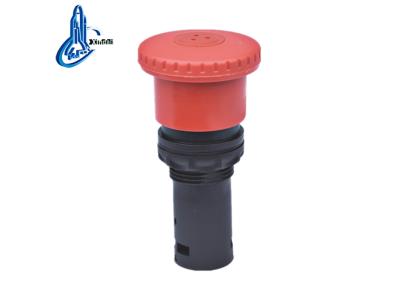

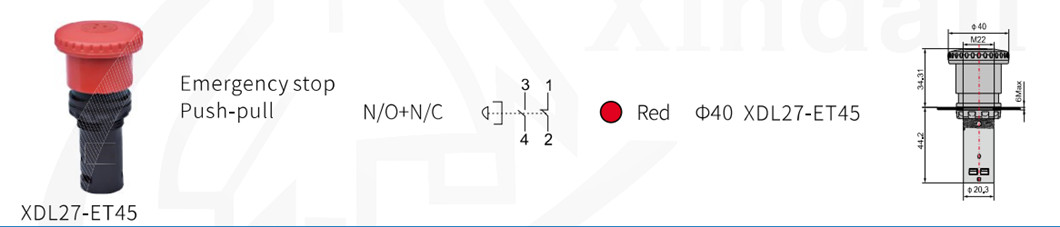

XDL27-ET45 Plastic Mushroom IP67 Waterproof Emergency Stop Push Button
Inquire NowDescription
The XDL27-ET45 Plastic Mushroom IP67 Waterproof Emergency Stop Push Button is a robust and reliable solution for emergency stopping in various electrical applications. Designed to operate efficiently with AC voltage up to 660V and DC voltage below 400V, this push button is essential for safety and control in industrial environments. Its durable construction features a main body made from high-grade anti-flame plastic and zinc alloy, providing excellent resistance to electrical erosion.
This emergency stop button is ideal for controlling signals and interlocking purposes, ensuring a swift response in critical situations. It meets stringent standards, being CE, IOS9001, ROHS, and UL certified, and is suitable for use in environments requiring high durability and reliability.
Specifications
| Main Technical Parameter | Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
- Operating temperature: IP67 rated, suitable for outdoor and harsh environments.
- Ideal for use in manufacturing, automation, and safety applications.
- Requires minimal maintenance and offers long operational life.
