XDL31-BA35 22mm Green Metal Switch Spring Return Push Button Switch
Inquire NowDescription
The XDL31-BA35 22mm Green Metal Switch Spring Return Push Button Switch is engineered for reliability and performance in controlling electrical circuits. With the capability to manage AC voltages up to 660V at 50Hz or 60Hz, and DC voltages under 400V, this versatile push button switch ensures both signal control and safety interlocking functionalities. Its robust construction utilizes a zinc alloy body complemented by high-grade anti-flame plastic, while the contacts are made from a special silver alloy, enhancing resistance to electrical erosion.
This switch serves a variety of applications, including indicating signals and emergency alerts, making it ideal for use in both commercial and industrial environments. Compliance with standards such as GB/T14048.1 and IEC60947-5-1 ensures that all products are CE, ISO9001, ROHS, and UL certified, underscoring the quality and safety of this component.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Operating Temperature | -5℃ to +55℃ |
| Storage Temperature | -25℃ to +70℃ |
| Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

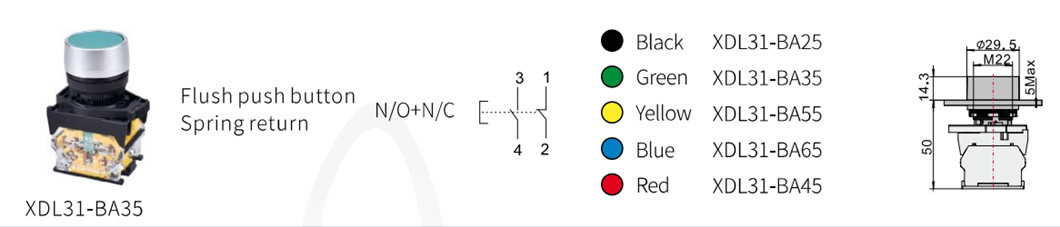

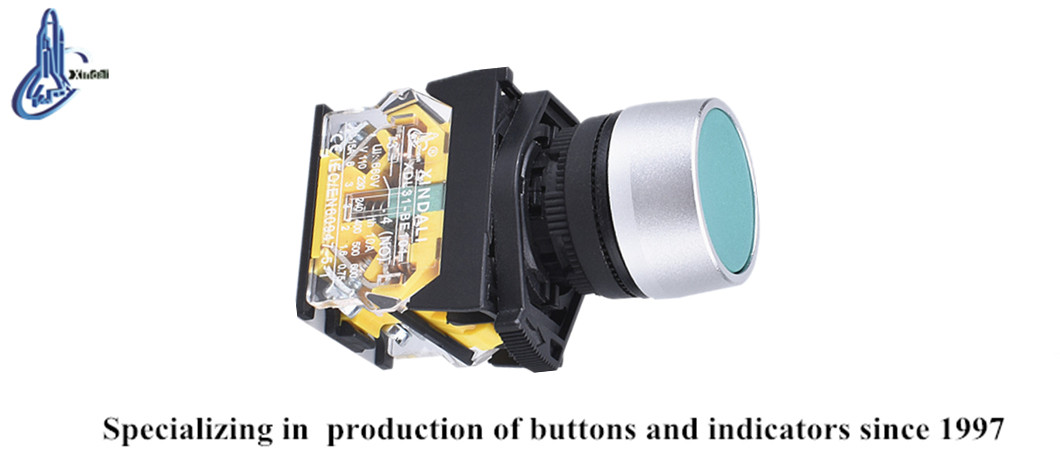

Product Show
