XDL31-BC45 40mm Mushroom Head Electric Spring Rutern Push Button Switch
Inquire NowDescription
The XDL31-BC45 is a high-quality 40mm Mushroom Head Electric Spring Return Push Button Switch, designed to handle AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V. This robust switch is perfect for controlling signals and interlocking purposes in various electrical applications. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features a specially designed silver alloy contact that provides exceptional resistance to electrical erosion. The switch is ideal for use in indicating signals, warning signals, and emergency signals, making it a versatile choice for numerous settings.
Engineered to meet international standards, the XDL31-BC45 has undergone rigorous testing to comply with GB/T14048.1 and IEC60947-5-1 and is certified by CE, ISO9001, ROHS, and UL. With a user-friendly design, it ensures reliability and safety in operation.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation type | Class III |
| Protection grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300 x 10 (push and pull type) Emergency button: 30 x 10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

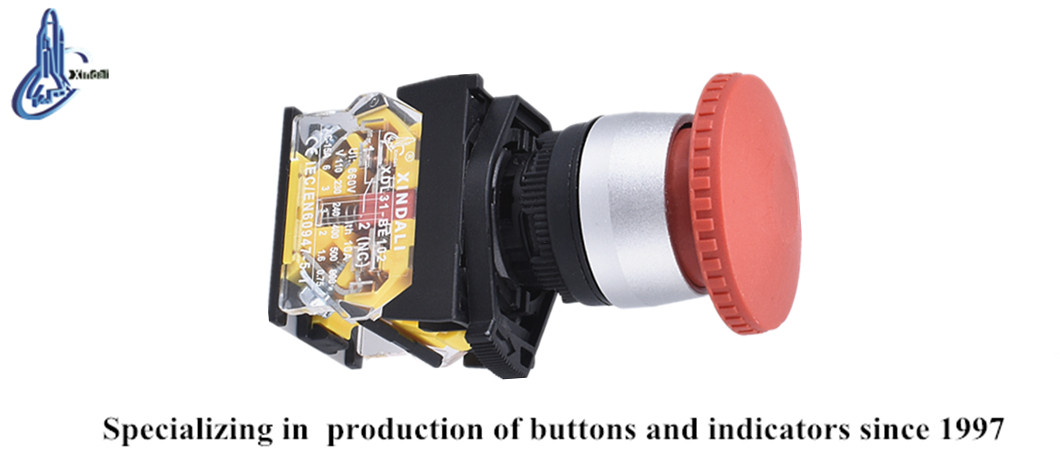

Product Show
