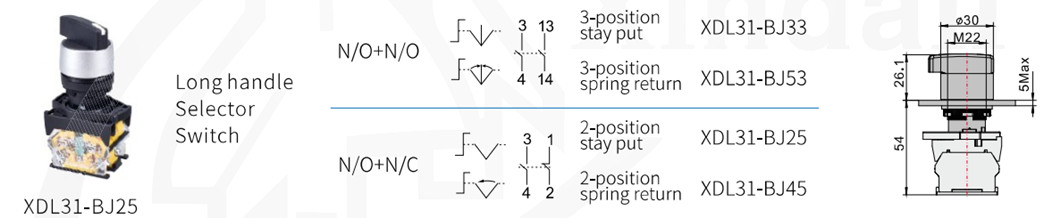

XDL31-BJ45 Black Spring Return 2 Position Selector Switch Long Hand Pushbutton Switch
Inquire NowDescription
The XDL31-BJ45 Black Spring Return 2 Position Selector Switch is an essential component for managing electrical circuits effectively. Designed to control AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V, this pushbutton switch is not only reliable but also versatile. It serves multiple purposes including signal control and interlocking applications. Crafted from high-quality zinc alloy and anti-flame plastic, the switch boasts a contact made of special silver alloy, ensuring exceptional resistance to electrical erosion. This switch is ideal for signaling applications, such as indicators, warnings, and emergencies, complying with industry standards including GB/T14048.1 and IEC60947-5-1. Furthermore, all products are CE, ISO9001, ROHS, and UL certified, ensuring safety and quality assurance.
Specifications
| Attribute | Detail |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Complies with IEC 68-2-6 |
| Impact Resistance | Complies with IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles (push and pull type) Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

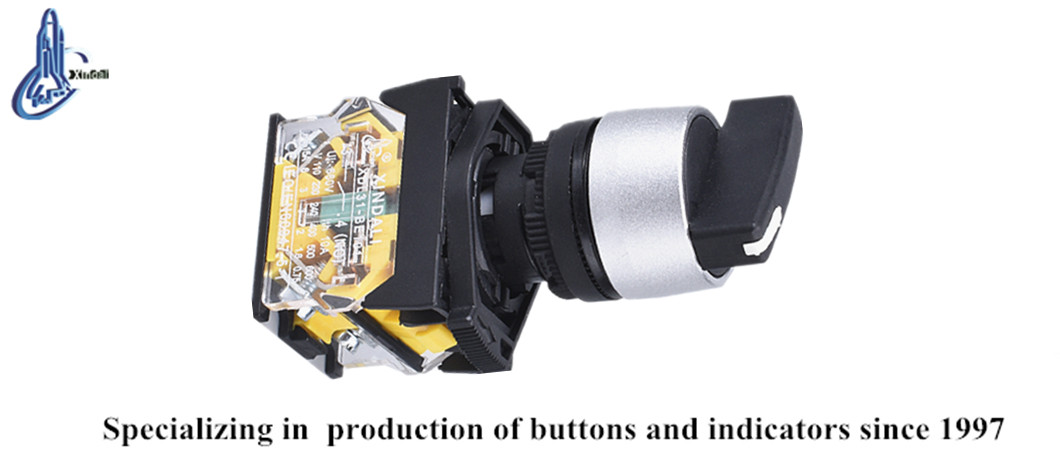

Product Show
