XDL31-BK2465 LED Red Handle Elevator Position Indicator Light Push Button Switch
Inquire NowDescription
The XDL31-BK2465 LED Red Handle Elevator Position Indicator Light Push Button Switch is an essential component for controlling circuits in elevator systems. Designed to operate with AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V, this push button switch is perfect for signaling and interlocking purposes. Its robust construction features a main body made of zinc alloy and high-grade anti-flame plastic, ensuring durability and safety. The special silver alloy contact enhances electrical erosion resistance, making it suitable for a variety of applications including indicating signals, warning signals, and emergency signals. This product adheres to GB/T14048.1 and IEC60947-5-1 standards and is certified by CE, ISO9001, ROHS, and UL, ensuring high quality and reliability.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 operations; Emergency button: 30,000 operations |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |

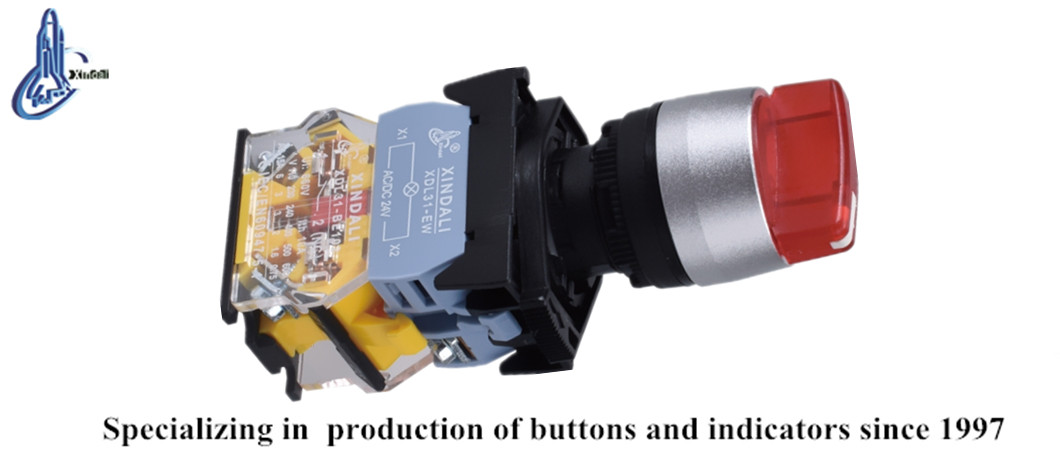

Product Show
