Description
The XDL31-BKJ2465 is a robust 2 Position Selector Switch designed with a Long Hand Push Button and an integrated Indicator Lamp. This versatile switch is specifically engineered to manage AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, making it an essential component for controlling circuits, signaling, and interlocking applications. Constructed with a durable zinc alloy body and high-grade anti-flame plastic, this push button switch ensures reliability and safety in various environments. The contacts utilize a special silver alloy, providing exceptional resistance against electrical erosion, while the indicator lamp is suitable for electrical circuits with AC voltage up to 380V and DC voltage below 380V. This product adheres to industry standards including GB/T14048.1 and IEC60947-5-1, and is certified for quality and safety by CE, ISO9001, ROHS, and UL.

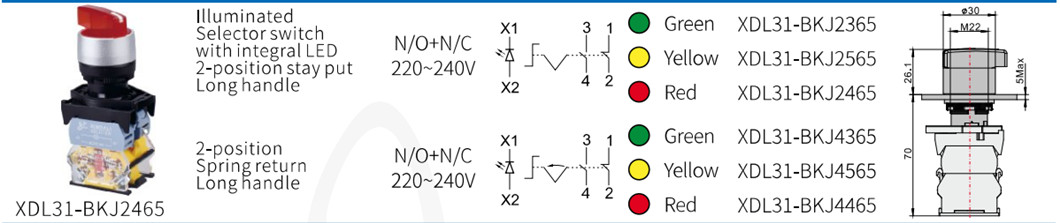

Specifications
| Feature | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Operating Temperature | -5℃ to +55℃ |
| Storage Temperature | -25℃ to +70℃ |
| Operating Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10, Emergency Button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Ideal for use in control panels, machinery, and signaling devices.
- Designed for efficient interlocking and operational safety.

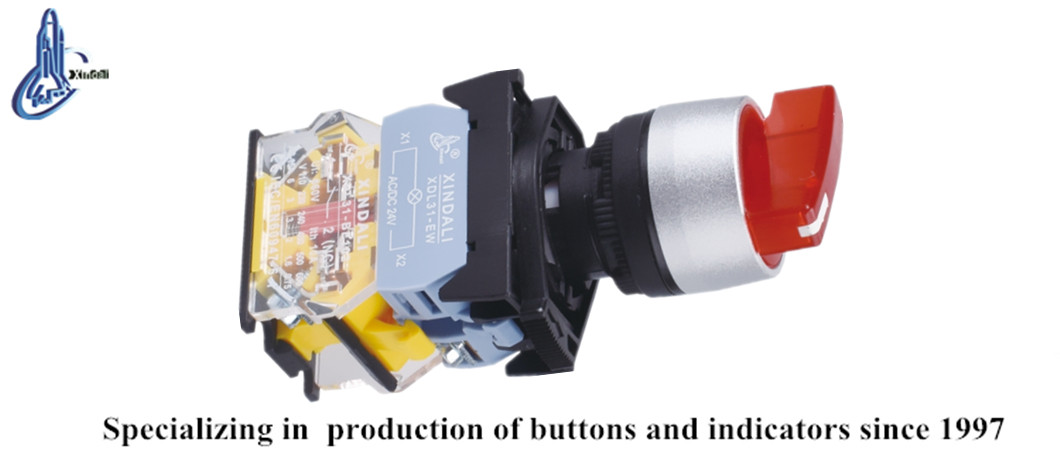

Product Show
