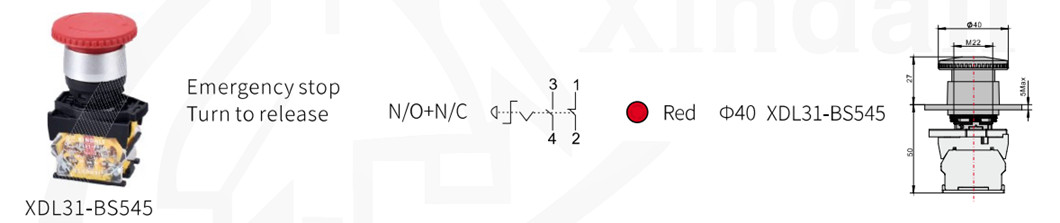

XDL31-BS545 Emergency Stop Mushroom Shut off Button Industrial Estop Pushbutton
Inquire NowDescription
The XDL31-BS545 Emergency Stop Mushroom Shut Off Button is a robust industrial pushbutton designed for critical safety applications. Capable of controlling AC voltages up to 660V and DC voltages below 400V, this pushbutton ensures reliable operation in various circuits. Its durable construction features a zinc alloy body combined with high-grade anti-flame plastic, while the contact utilizes a special silver alloy for exceptional resistance against electrical erosion. This product is not only ideal for emergency situations but also serves well as a signal, warning, or interlocking switch. Adhering to standards such as GB/T14048.1 and IEC60947-5-1, the XDL31-BS545 is CE, ISO9001, RoHS, and UL certified, guaranteeing quality and safety in its performance.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10, Emergency Button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |

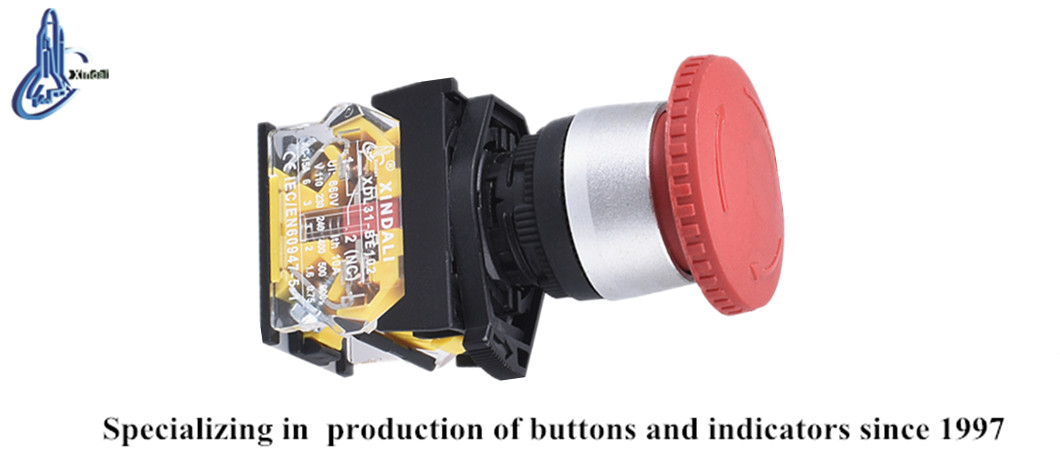

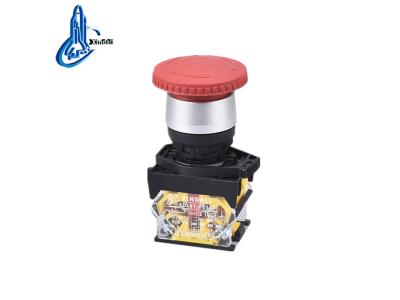

Product Show
