XDL31-BT45 40mm Mushroom Push Button Head Metal Push Pull Switch
Inquire NowDescription
The XDL31-BT45 is a reliable 40mm Mushroom Push Button Head Metal Push Pull Switch designed for controlling AC circuits with a voltage of up to 660V and DC circuits below 400V. Constructed from durable zinc alloy and high-grade anti-flame plastic, this switch ensures long-lasting performance even under demanding conditions. It features a special silver alloy contact, providing excellent resistance to electrical erosion, making it ideal for signal control and interlocking applications.
This versatile switch is perfect for use in various electrical appliances and signaling systems, including indicating signals, warning signals, and emergency signals. Compliant with international standards such as GB/T14048.1 and IEC60947-5-1, the XDL31-BT45 is certified CE, ISO9001, ROHS, and UL, ensuring safety and reliability in any environment.
Specifications
| Feature | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Humidity | Operating and Storage: 35% to 85% RH |
| Vibration Resistance | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency Button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

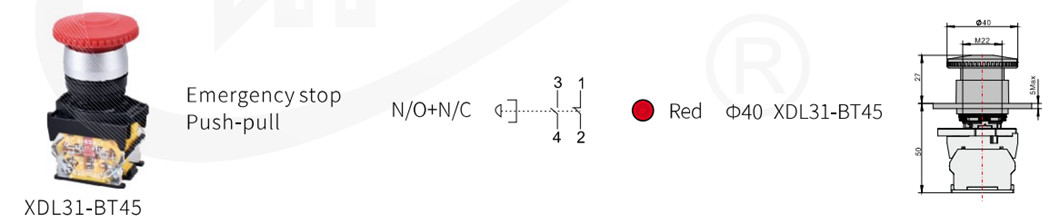

Product Show
