XDL31-BWA3465 Xindali Red Flush Head Signal Indicator Light Push Button Switch
Inquire NowDescription
The XDL31-BWA3465 Xindali Red Flush Head Signal Indicator Light Push Button Switch is a robust and reliable component designed for controlling electrical circuits. It operates efficiently with AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V. This push button switch is perfect for various applications, including signal indication and interlocking purposes. Crafted from durable zinc alloy and high-grade flame-resistant plastic, it features special silver alloy contacts that provide exceptional resistance against electrical erosion. The accompanying signal lamp series is ideal for electrical circuits with AC voltage up to 380V and DC voltage below 380V, making it suitable for indicating signals, warning signals, and emergency signaling. Compliance with GB/T14048.1 and IEC60947-5-1 standards, along with CE, ISO9001, RoHS, and UL certifications, ensures quality and reliability.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Push button: 300 x 10, Emergency button: 30 x 10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

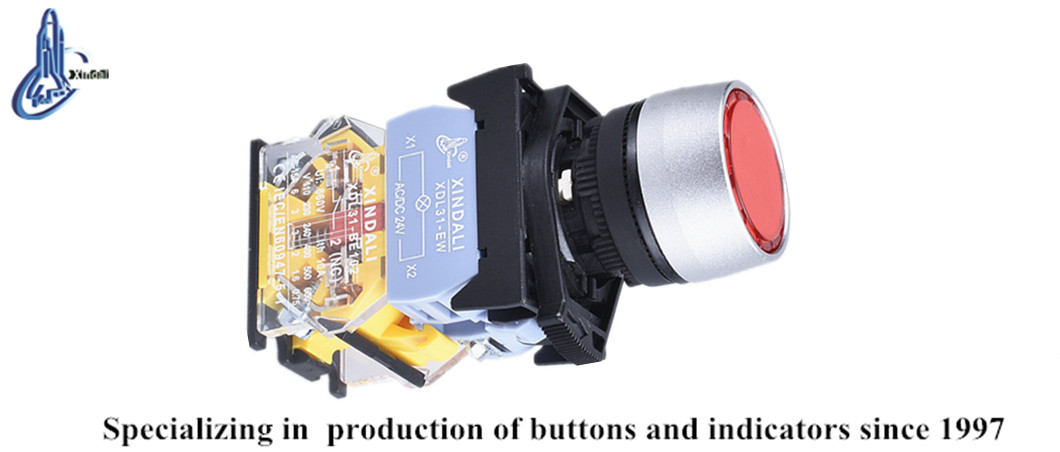

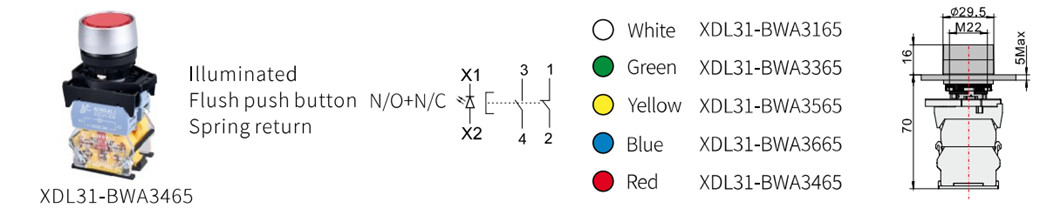

Product Show
