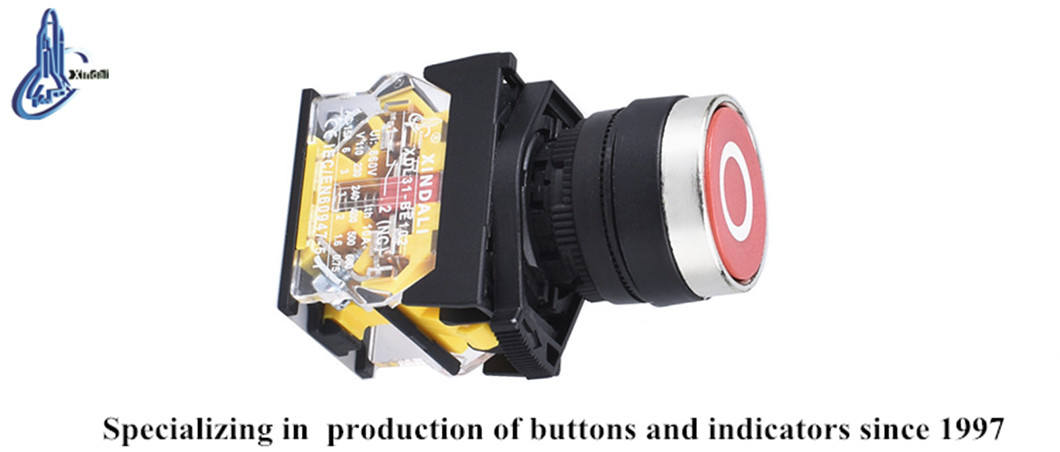

XDL31-CA4325 Red Flush Pushbutton Symbol Metal Push Button Switch
Inquire NowDescription
The XDL31-CA4325 Red Flush Pushbutton Symbol Metal Push Button Switch is a versatile and robust solution designed for controlling AC and DC voltage circuits. Capable of handling AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, this switch is perfect for interlocking and signaling purposes in various applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, it features a special silver alloy contact that provides high anti-electrical erosion properties. The combination of its compact design and superior materials makes it suitable for use as an indicating signal, warning signal, or emergency signal, ensuring safety and reliability. Certified according to GB/T14048.1 and IEC60947-5-1, this push button complies with CE, ISO9001, ROHS, and UL standards, making it an excellent choice for quality-conscious applications.
Specifications
| Attribute | Details |
|---|---|
| Voltage Capacity | AC: up to 660V/AC50Hz or 60Hz, DC: below 400V |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300 x 10, Emergency Button: 30 x 10 |
| Fastening Torque | 0.8 Nm (Max: 1.2 Nm) |

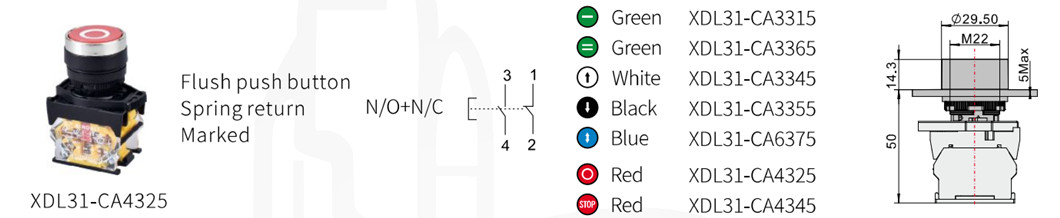

Product Show
