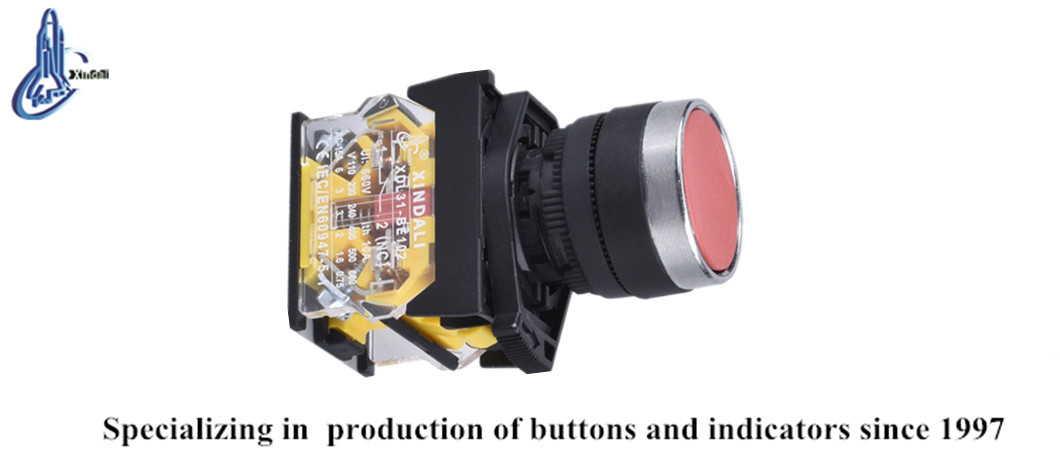

XDL31-CA45 Xindali IP65 Switch High Quality Waterproof Push Button Switch
Inquire NowDescription
The XDL31-CA45 Xindali IP65 Switch is a high-quality waterproof push button switch designed for reliable operation in various electrical applications. Perfect for controlling circuits of AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, this switch excels in signal control and interlocking purposes. Constructed from durable zinc alloy and high-grade anti-flame plastic, the push button features a special silver alloy contact that provides exceptional resistance to electrical erosion.
With the capability to handle electrical appliances circuits of up to 380V (AC) and below 380V (DC), it’s ideal for use in indicating signals, warning signals, and emergency signals. All products in this series comply with GB/T14048.1 and IEC60947-5-1 standards, ensuring safety and quality. Additionally, the product is CE, ISO9001, RoHS, and UL certified.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 operations; Emergency button: 30,000 operations |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
For optimal performance and longevity, it is recommended to regularly inspect the switch for any signs of wear or damage, especially in applications exposed to harsh environmental conditions. Ensure proper installation according to the provided guidelines to maintain the integrity of the switch.

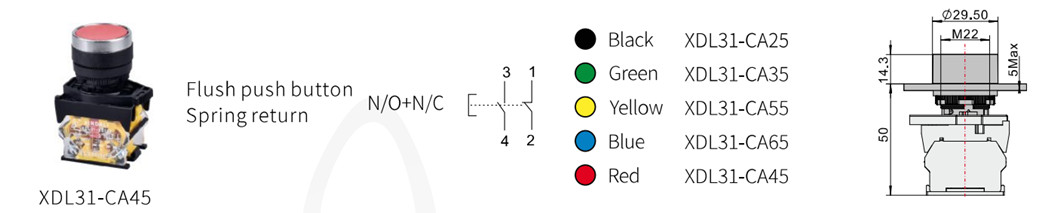

Product Show
