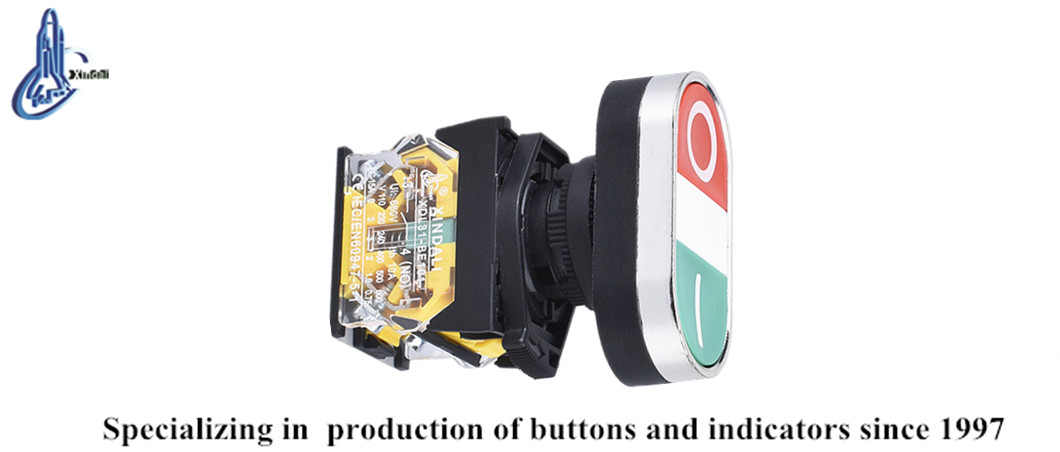

XDL31-CB8325 China Button Switch on off Double Control Head Pushbutton Switch
Inquire NowDescription
The XDL31-CB8325 China Button Switch is a robust and versatile pushbutton switch designed for efficient control of AC and DC circuits. Capable of handling AC voltage up to 660V at 50Hz/60Hz and DC voltage below 400V, this switch is ideal for signal control and interlocking applications. Its main body is constructed from durable zinc alloy and high-quality anti-flame plastic, ensuring longevity and safety. The contacts are made from a special silver alloy to provide excellent resistance against electrical erosion. Additionally, this switch is ideal for use in applications requiring indicating signals, warning signals, or emergency signals. The XDL31-CB8325 is compliant with GB/T14048.1 and IEC60947-5-1 standards, and all products are certified CE, ISO 9001, ROHS, and UL, ensuring high-quality and reliable performance.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

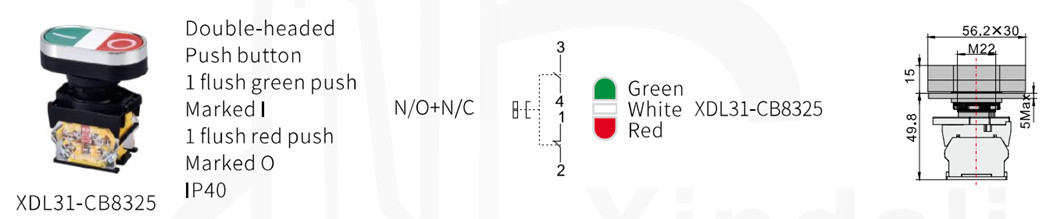

Product Show
