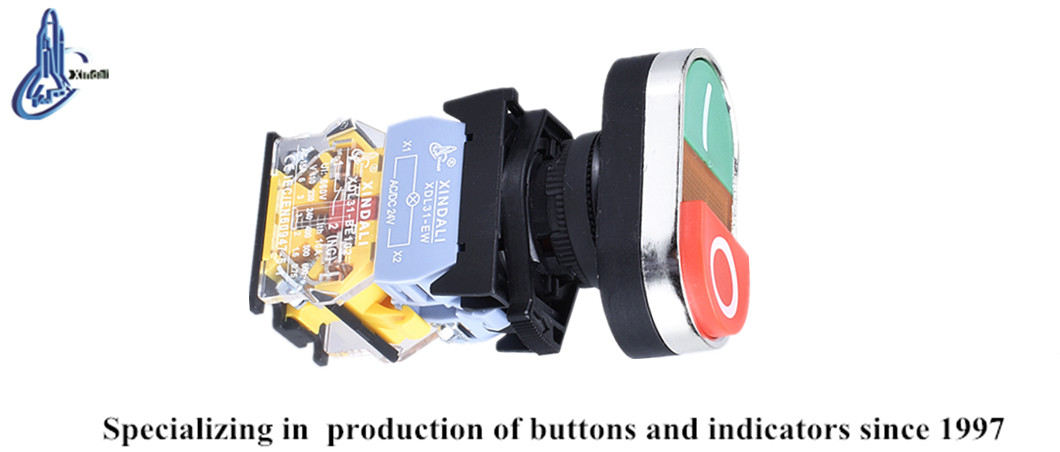

XDL31-CBW8465 LED Indicator Double Head Push Button Switch with Light
Inquire NowDescription

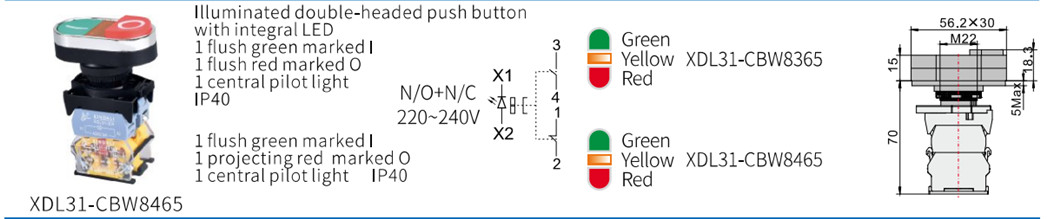

The XDL31-CBW8465 LED Indicator Double Head Push Button Switch with Light is an essential component in circuit control, designed for both AC and DC applications. Capable of handling AC voltage up to 660V and DC voltage below 400V, this push button switch is perfect for controlling signals and interlocking operations. Constructed from a robust zinc alloy body and high-grade anti-flame plastic, it features specialized silver alloy contacts that provide excellent resistance to electrical erosion. The integrated signal lamp is suitable for electrical circuits with AC voltage up to 380V, making it ideal for indicating, warning, and emergency signals. This product adheres to international safety and quality standards, including GB/T14048.1, IEC60947-5-1, and is certified by CE, ISO9001, ROHS, and UL.
Specifications
Attribute | Details |
---|---|
Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
Operating & storage air relative humidity | 35~85% RH |
Vibration frequency | Conforming to IEC 68-2-6 |
Impact resistance | Conforming to IEC 68-2-27 |
Pollution grade | 3 |
Installation sort | Class III |
Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
Mechanical life | Pushbutton: 300*10; Emergency button: 30*10 |
Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
