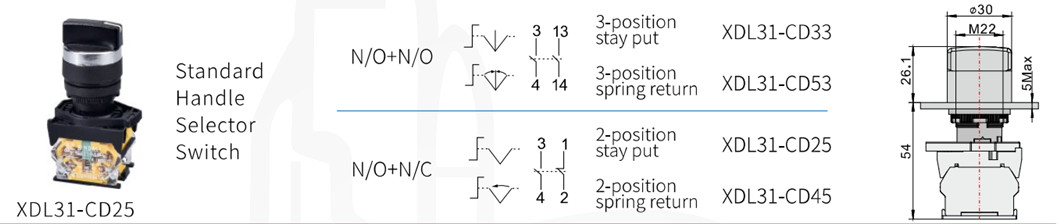

XDL31-CD33 Spring Return 2 Position Selector Switch 220V Push Button Switch
Inquire NowDescription
The XDL31-CD33 Spring Return 2 Position Selector Switch is a highly versatile push button switch designed for efficient control in electrical circuits. Capable of managing AC voltages up to 660V (50Hz or 60Hz) and DC voltages below 400V, this switch is ideal for both signal control and interlocking applications. Constructed with a robust zinc alloy body and high-grade anti-flame plastic, it ensures durability and safety. The contacts utilize a special silver alloy, enhancing resistance against electrical erosion.
This switch is not only suitable for general use but also excels in indicating signals, warning signals, and emergency signaling. It meets various international standards, including GB/T14048.1 and IEC60947-5-1, while being CE, ISO9001, RoHS, and UL certified, ensuring reliability and quality performance.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles, Emergency button: 30,000 cycles |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
For optimal performance and longevity, ensure that the switch is operated within the specified temperature and humidity ranges. Regular inspection and maintenance are recommended to prevent electrical erosion and ensure reliable operation.

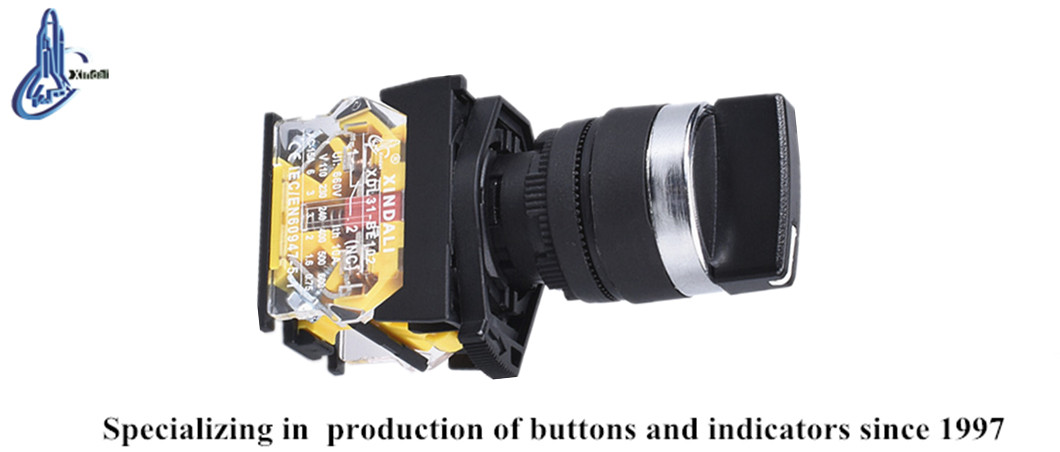

Product Show
