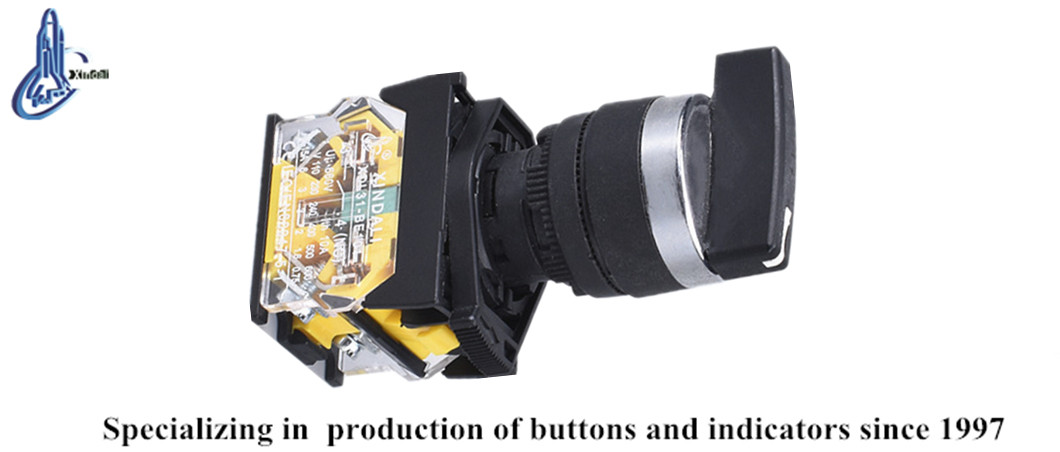

XDL31-CJ33 Waterproof IP65 Long Headle Selector Switch Push Button Switch
Inquire NowDescription
The XDL31-CJ33 Waterproof IP65 Long Headle Selector Switch Push Button Switch is engineered for durability and reliability in various electrical applications. Designed to operate in environments with moisture and dust, this switch is suitable for controlling AC voltage circuits up to 660V and DC voltage up to 400V. The construction features a robust zinc alloy body and premium anti-flame plastic, ensuring resilience against electrical erosion and environmental factors. This switch not only provides effective control for signal and interlocking purposes but also serves as an excellent solution for indicating, warning, and emergency signals.
Specifications
| Attribute | Details |
|---|---|
| Standards Conformed | IEC60947-5-1, GB/T14048, GB14048.5 |
| Operating Temperature | -5℃ to +55℃ |
| Storage Temperature | -25℃ to +70℃ |
| Operating Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10, Emergency Button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |

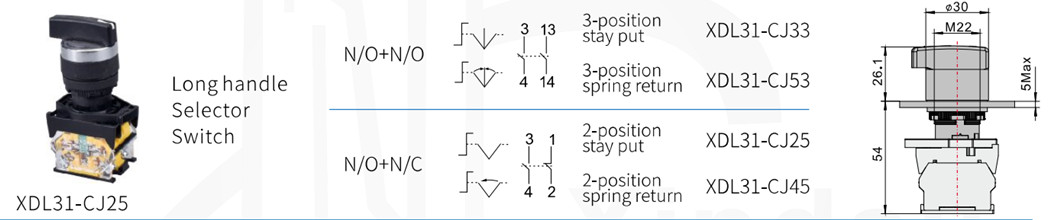

Product Show
