XDL31-CK3465 Elevator Position Indicator Push Button 2 Position Pushbutton Switch
Inquire NowDescription
The XDL31-CK3465 Elevator Position Indicator Push Button is a robust and reliable 2-position pushbutton switch designed for controlling AC and DC circuits. Capable of handling AC voltages up to 660V (50Hz or 60Hz) and DC voltages below 400V, this pushbutton is ideal for signal control and interlocking applications. The device features a sturdy construction with a main body made from zinc alloy and high-grade anti-flame plastic, ensuring durability and safety. Its contacts utilize a special silver alloy, providing superior resistance to electrical erosion. The push button is perfect for indicating signals, warning signals, and emergency alerts, making it an essential component in elevator systems. All products comply with the latest standards, including GB/T14048.1 and IEC60947-5-1, and are certified by CE, ISO9001, ROHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
For optimal performance, ensure that the installation adheres to the specified environmental conditions and standards. Regular maintenance can enhance the longevity of the push button switch.

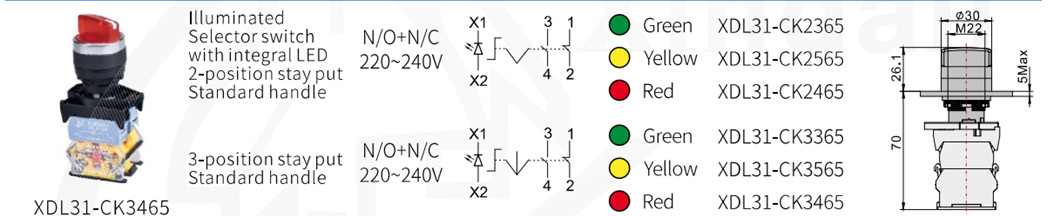

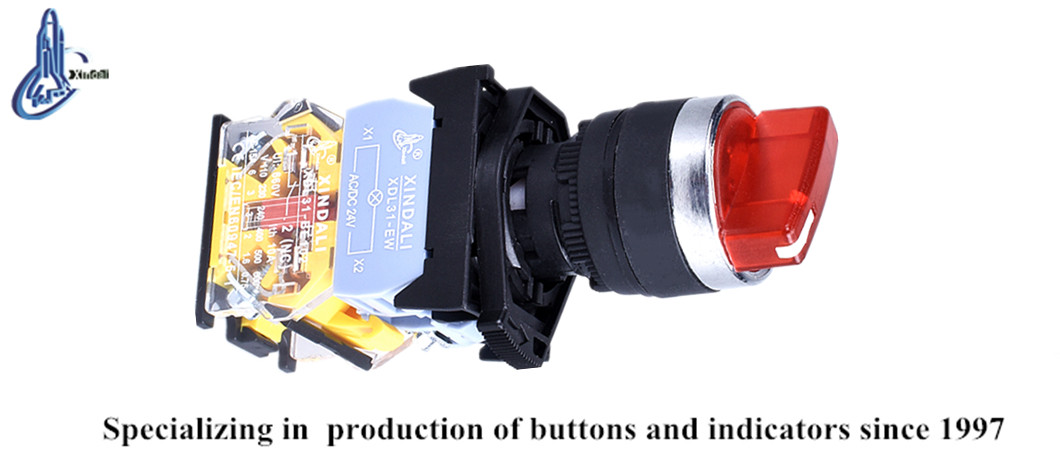

Product Show
