XDL31-CL4325 Waterproof IP65 Convex Push Button Switch with Symbol Logo
Inquire NowDescription
The XDL31-CL4325 Waterproof IP65 Convex Push Button Switch is a versatile and robust solution for controlling electrical circuits. Designed to operate with AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this push button is ideal for signal controlling and interlocking applications. The switch features a durable body made from zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. Moreover, the contacts utilize a special silver alloy to provide excellent resistance against electrical erosion.
This product is not only functional but also adheres to rigorous standards, complying with GB/T14048.1 and IEC60947-5-1, and is certified with CE, ISO9001, RoHS, and UL, guaranteeing its reliability in various electrical applications. With a waterproof rating of IP65, it withstands harsh environmental conditions, making it suitable for use in both indoor and outdoor settings.
Specifications
| Basic Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃ | Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54 | Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 cycles | Emergency button: 30,000 cycles |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

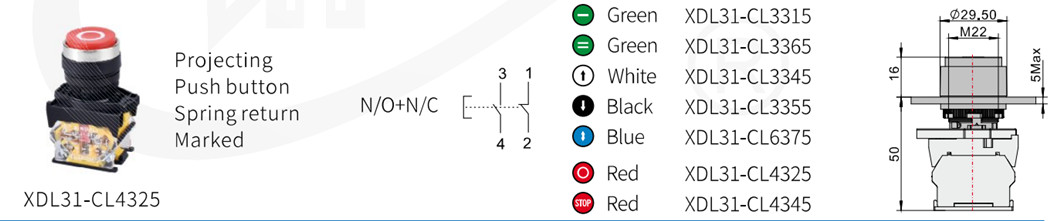

Product Show
