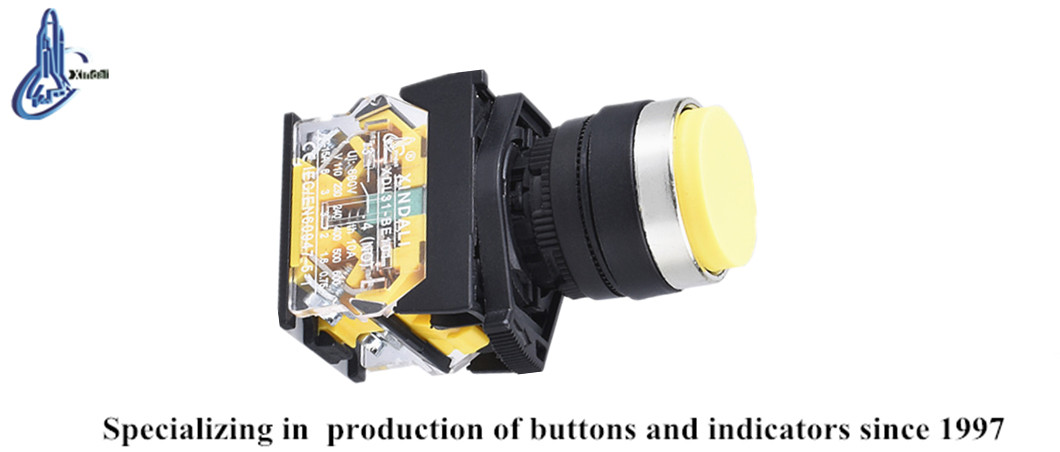

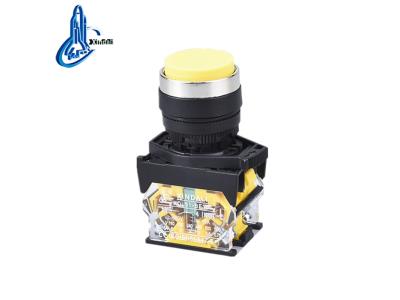

XDL31-CL55 IP65 Yellow Convex Push Button Waterproof Electrical Switch
Inquire NowDescription
The XDL31-CL55 IP65 Yellow Convex Push Button is a reliable and durable waterproof electrical switch designed for controlling circuits in both AC and DC applications. Rated for AC voltage up to 660V/AC 50Hz or 60Hz and DC voltage below 400V, this push button is ideal for various signaling and interlocking purposes. Crafted from a robust zinc alloy and high-grade anti-flame plastic, it features contacts made of a special silver alloy to enhance resistance against electrical erosion. This product is perfect for indicating, warning, or emergency signals, and meets international standards including GB/T14048.1 and IEC60947-5-1, backed by CE, ISO9001, ROHS, and UL certifications.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 operations Emergency button: 30*10 operations |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
- Ideal for various electrical applications including signaling and interlocking.
- Meets rigorous international safety and quality standards.

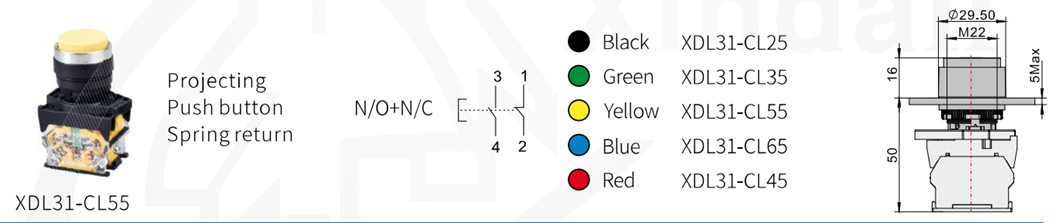

Product Show
