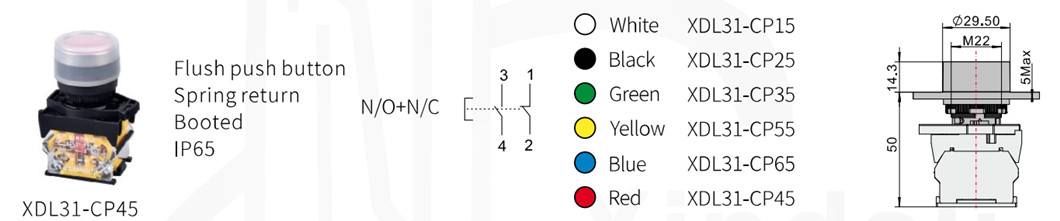

XDL31-CP45 Waterproof IP65 Button Is Stop The Cap Rubber Cap Pushbutton Switch
Inquire NowDescription
The XDL31-CP45 Waterproof IP65 Button is a robust and reliable pushbutton switch designed for various industrial applications. Engineered to control AC circuits up to 660V at 50Hz or 60Hz, and DC circuits below 400V, this switch is ideal for controlling signals and interlocking tasks. Its main body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. Featuring a contact made from special silver alloy, the switch offers superior resistance to electrical erosion, making it perfect for use in demanding environments. The signal lamp series is suitable for electrical appliances with an AC voltage of up to 380V at 50Hz and DC voltage below 380V, serving as an excellent choice for indicating, warning, and emergency signals. All products meet the GB/T14048.1 and IEC60947-5-1 standards and are certified with CE, ISO9001, RoHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles Emergency Button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
For optimal performance and longevity, ensure the switch is installed in accordance with the provided ambient temperature and humidity specifications. Regular maintenance checks are recommended to maintain operational integrity.

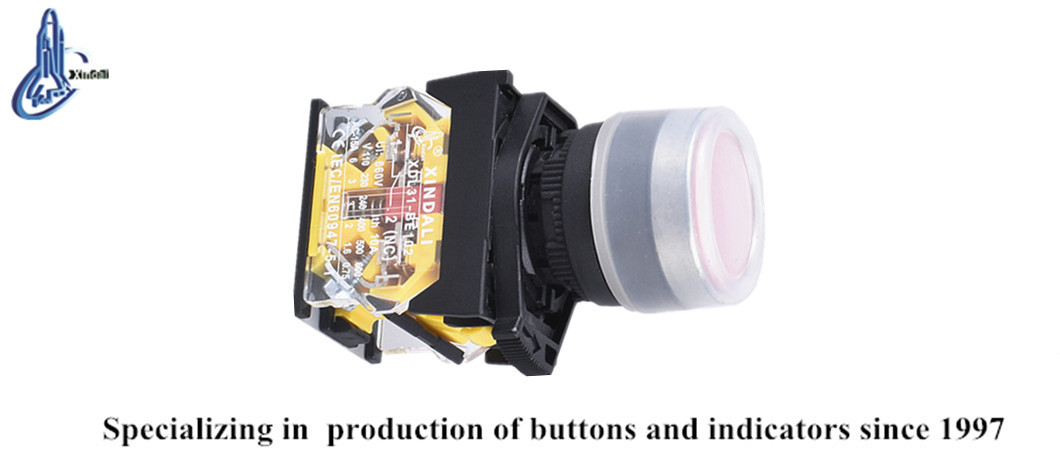

Product Show
