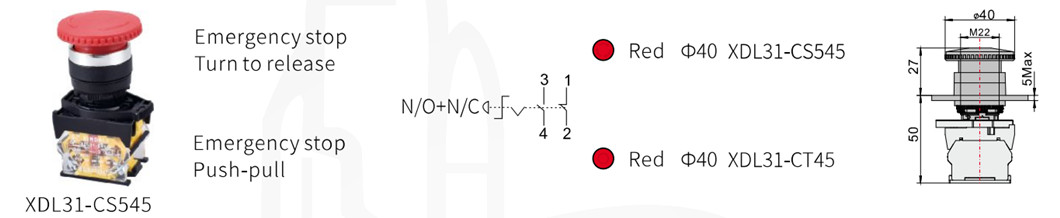

XDL31-CS545 Mushroom Head Turn to Release Emergency Stop Push Button Switch
Inquire NowDescription
The XDL31-CS545 Mushroom Head Turn to Release Emergency Stop Push Button Switch is a reliable and essential component for controlling circuits in industrial and commercial settings. Designed to handle AC voltages of up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this push button switch is ideal for signal control and interlocking applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, it boasts a specially designed silver alloy contact for enhanced resistance to electrical erosion. With compliance to international standards such as GB/T14048.1 and IEC60947-5-1, this device is CE, ISO9001, ROHS, and UL certified, ensuring safety and reliability. The XDL31-CS545 is perfect for use as an emergency signal, warning indicator, or control switch.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
This push button switch is engineered for versatility and durability in various environments. Ensure regular maintenance for optimal performance and check for compliance with your local electrical standards.

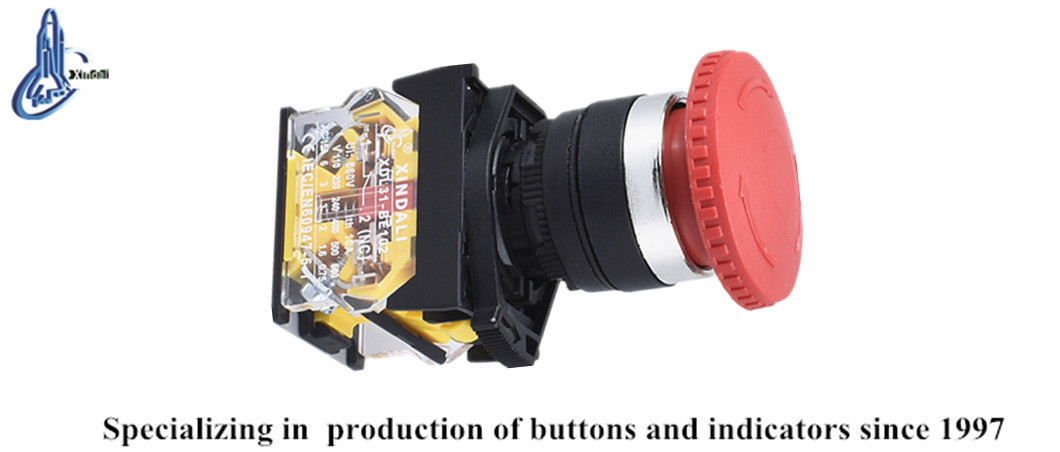

Product Show
