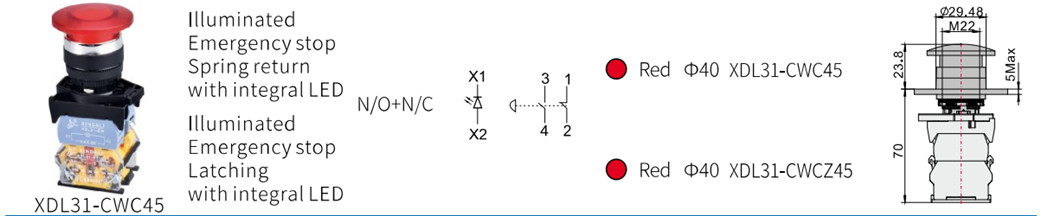

XDL31-CWC45 Emergency Light Spring Return Push Button Switch with Light
Inquire NowDescription
The XDL31-CWC45 Emergency Light Spring Return Push Button Switch is a highly reliable component designed for controlling circuits of AC voltage up to 660V/AC50Hz or 60Hz and DC voltage below 400V. This versatile switch is perfect for signal control and interlocking applications. Crafted from durable zinc alloy and high-grade anti-flame plastic, it ensures long-lasting performance. The special silver alloy contacts provide superior resistance to electrical erosion, making it ideal for demanding environments.
This switch features a signal lamp series suitable for electrical appliances with AC voltage up to 380V/50Hz and DC voltage below 380V, serving as an effective indicator for warnings, emergencies, and signals. Adhering to rigorous standards (GB/T14048.1 and IEC60947-5-1), this product is CE, ISO9001, ROHS, and UL certified, ensuring top-notch quality and reliability.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Operating Temperature | -5℃ to +55℃ |
| Storage Temperature | -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10, Emergency Button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Durable construction for extended use in various environments.
- Certifications ensure compliance with international safety and quality standards.

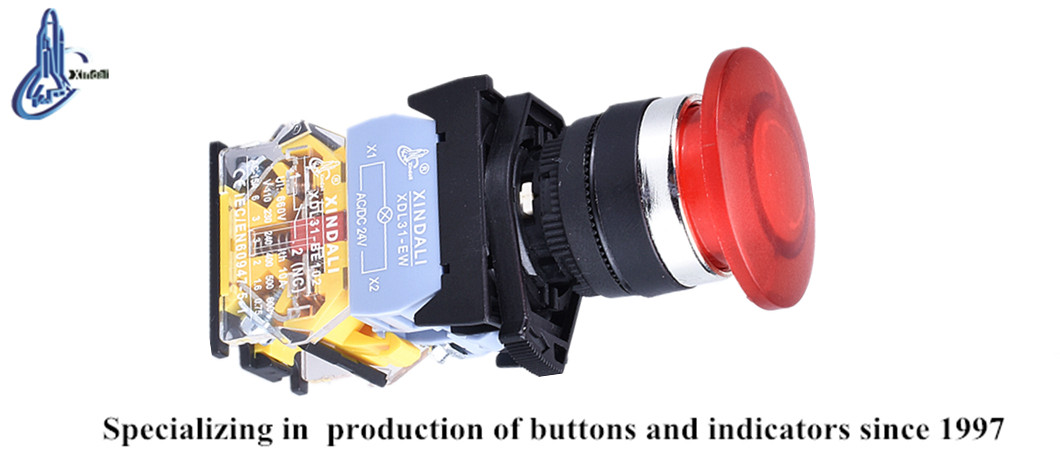

Product Show
