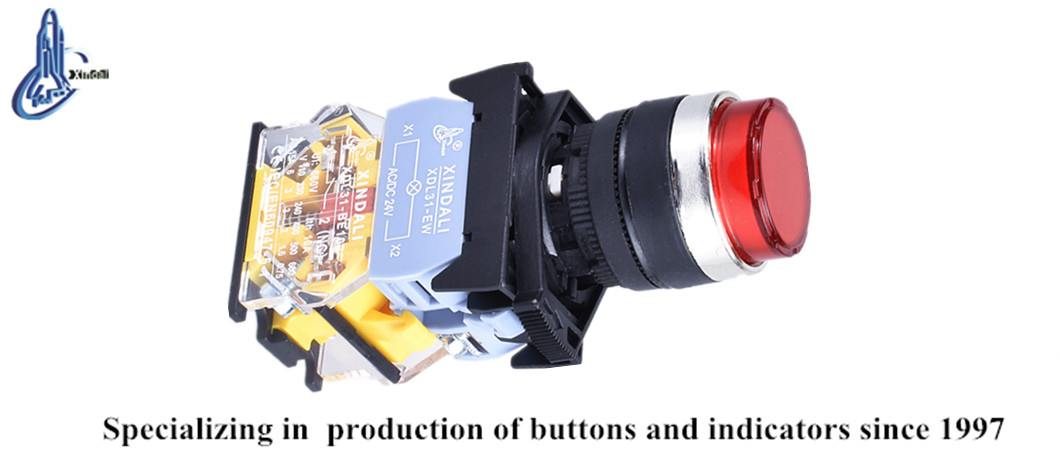

XDL31-CWL3465 Red LED Light Indicator Convex Head Push Button Switch
Inquire NowDescription
The XDL31-CWL3465 Red LED Light Indicator Convex Head Push Button Switch is designed for controlling circuits of AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V. It is ideal for signaling and interlocking applications, making it perfect for various electrical appliances. The main body is constructed from durable zinc alloy complemented by high-grade anti-flame plastic, while the contacts utilize a special silver alloy for superior anti-electrical erosion properties. This push button switch also features a LED indicator, suitable for indicating signals, warning signals, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are certified CE, ISO9001, ROHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 (push and pull type), Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
- High anti-electrical erosion due to special silver alloy contacts.
- Ideal for emergency signaling and warning signal applications.

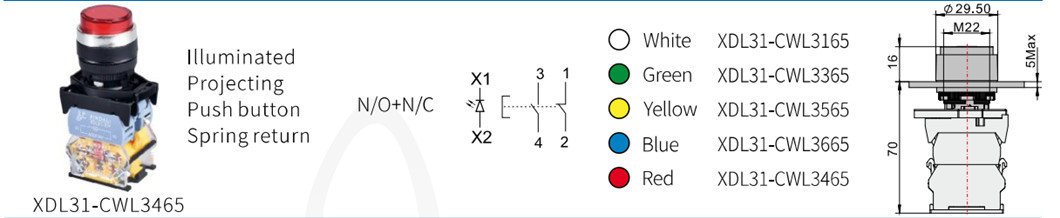

Product Show
