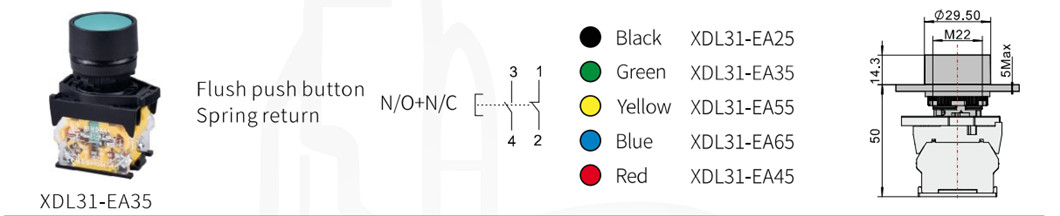

XDL31-EA35 Xindali Industries Push to Start Button 12 Volt Pushbutton Switch
Inquire NowDescription
The XDL31-EA35 Push to Start Button from Xindali Industries is a robust 12 Volt pushbutton switch designed for reliable operation in various electrical circuits. Ideal for controlling AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V, this switch is perfect for signal control and interlocking purposes. Its main body is constructed from durable zinc alloy and high-grade anti-flame plastic, while the contacts are made from a special silver alloy, ensuring high resistance to electrical erosion. The XDL31-EA35 is suitable for a variety of applications, including indicating signals, warning signals, and emergency signals, making it an essential component for any electrical appliance circuit.

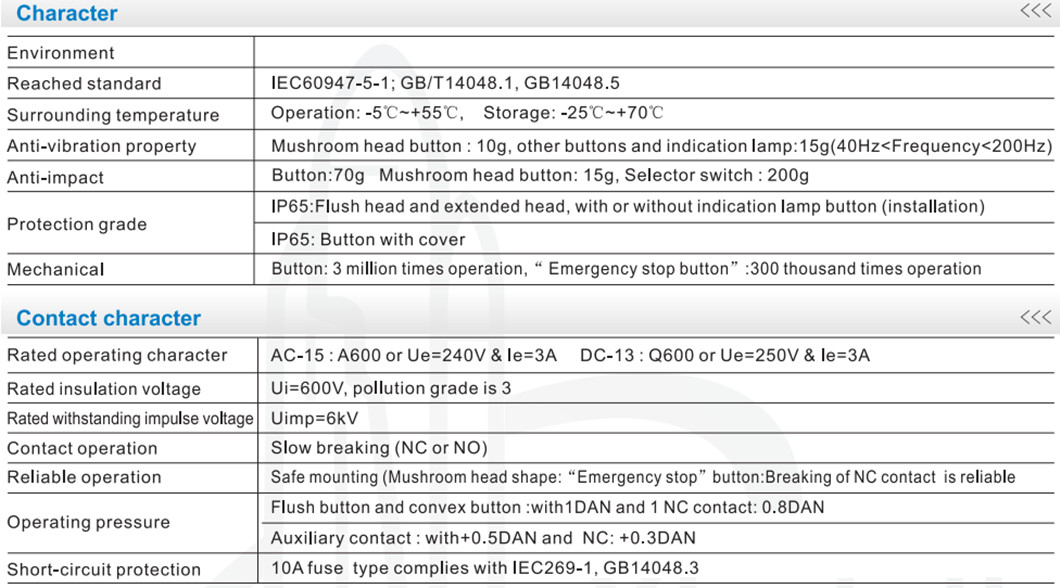

Specifications
| Specification | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | Grade 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

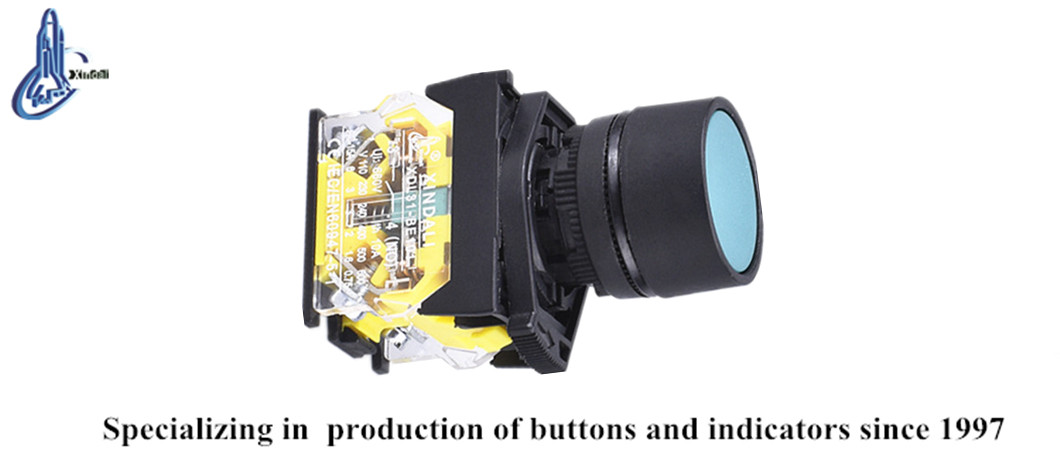

Product Show
