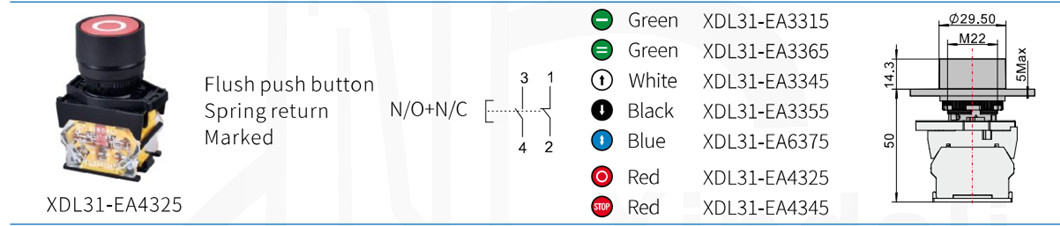

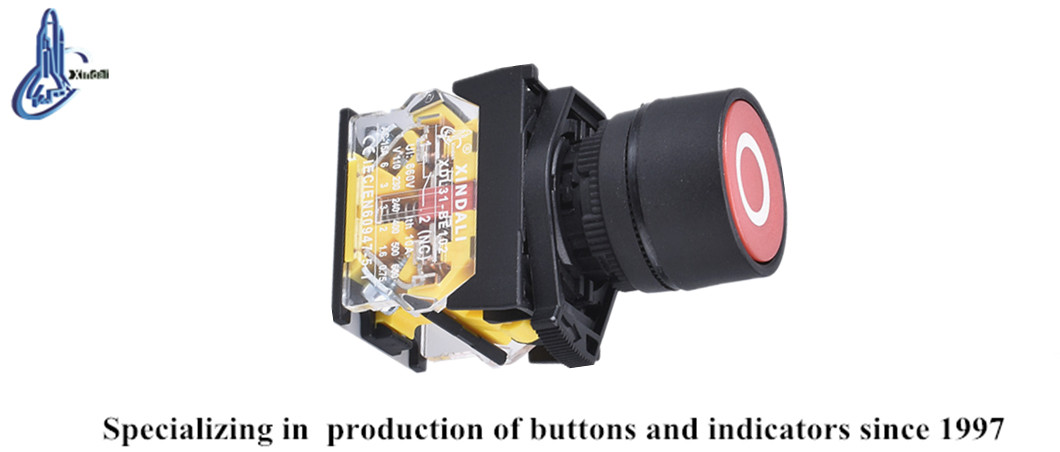

XDL31-EA4325 Xindali Industrial Hoist Flush Mark Push to Start Push Button Switch
Inquire NowDescription
The XDL31-EA4325 Xindali Industrial Hoist Flush Mark Push to Start Push Button Switch is designed for robust control applications, capable of managing AC voltage up to 660V and DC voltage below 400V. This switch is ideal for controlling circuits in industrial environments, facilitating signal management and interlocking requirements. Crafted from a durable zinc alloy and high-grade anti-flame plastic, it promises longevity and reliability. The push button features a special silver alloy contact designed to withstand high electrical erosion, ensuring optimal performance. Furthermore, the accompanying signal lamp series is compatible with electrical appliances up to 380V, making it suitable for various signaling purposes such as indicating, warning, and emergency signals. All products are certified according to GB/T14048.1 and IEC60947-5-1 standards, and comply with CE, ISO 9001, RoHS, and UL certifications.

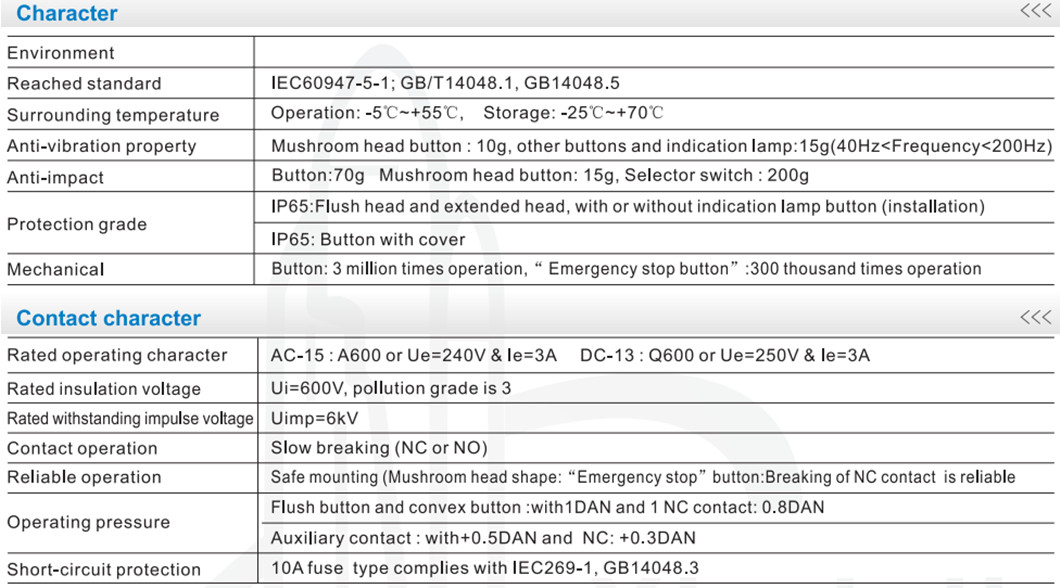

Specifications
| Characteristic | Details |
|---|---|
| Conforming Standards | IEC60947-5-1: GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 operations; Emergency button: 30,000 operations |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Product Show
