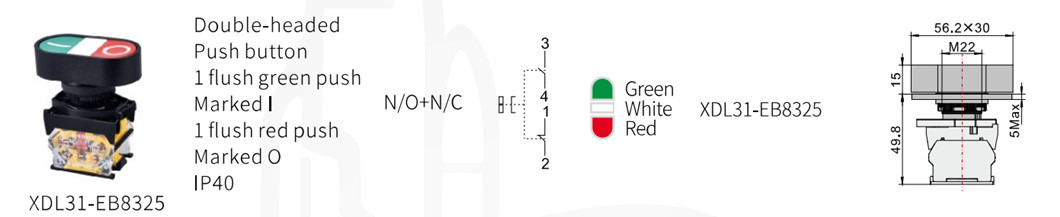

XDL31-EB8325 Double Head Electric Lock 22mm on off Push Button Switch
Inquire NowDescription
The XDL31-EB8325 Double Head Electric Lock features a 22mm on/off push button switch designed for controlling circuits with AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V. This robust switch is perfect for controlling signals and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, it ensures high performance and longevity. The special silver alloy contacts provide exceptional resistance to electrical erosion. Ideal for use in electrical appliances, the signal lamp series operates at AC voltage up to 380V (50Hz) and DC voltage below 380V, making it suitable for indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are certified with CE, IOS9001, ROHS, and UL.
Specifications
| Basic Characteristic | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1: GB/T14048. GB14048.5 |
| Ambient Temperature | Operating: -5℃~+55℃; Storage: -25℃~+70℃ |
| Operating and Storage Air Relative Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

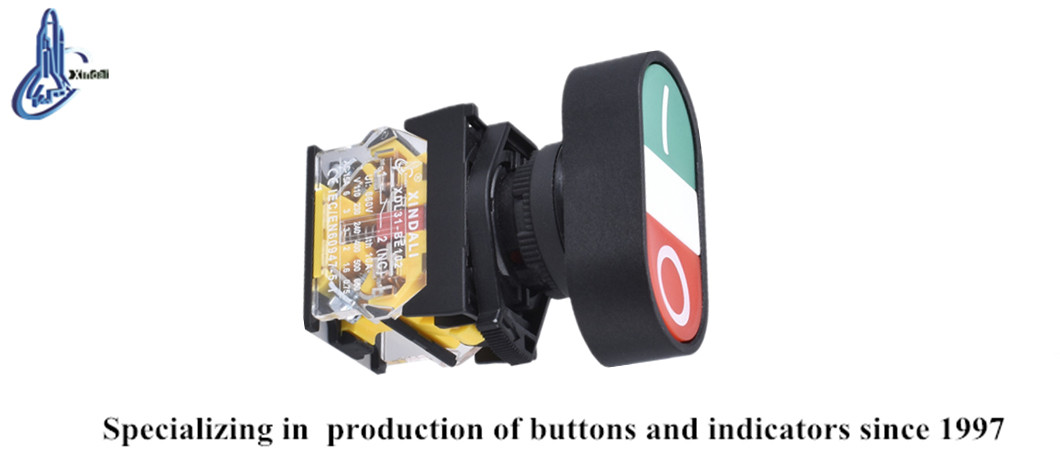

Product Show
