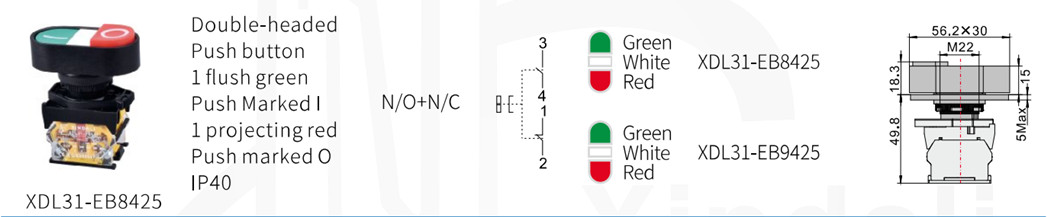

XDL31-EB8425 Plastic Push to on off Switch Double Color Push Button Switch
Inquire NowDescription
The XDL31-EB8425 Plastic Push to On/Off Switch is an innovative double color push button switch designed for reliability and efficiency in controlling electrical circuits. This versatile switch can manage AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, making it perfect for signal control and interlocking functions in various applications. Constructed from a durable zinc alloy and high-grade anti-flame plastic, the switch features contacts made of a unique silver alloy, providing exceptional resistance to electrical erosion. With CE, IOS9001, ROHS, and UL certifications, this push button switch adheres to international standards, ensuring safety and performance in all environments. Ideal for both indicating and emergency signaling, it meets the requirements for electrical appliances with AC voltages up to 380V at 50Hz and DC voltages below 380V.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300×10; Emergency Button: 30×10 |
| Fastening Torque | 0.8Nm (Max: 1.2Nm) |
Additional Information
For optimal use, ensure the installation of this push button switch is performed in accordance with the specified ambient conditions and standards.

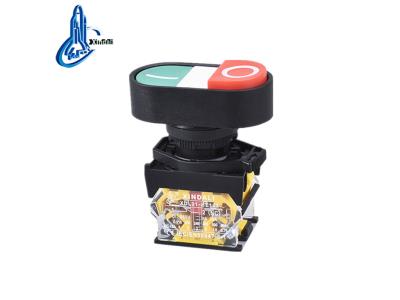

Product Show
