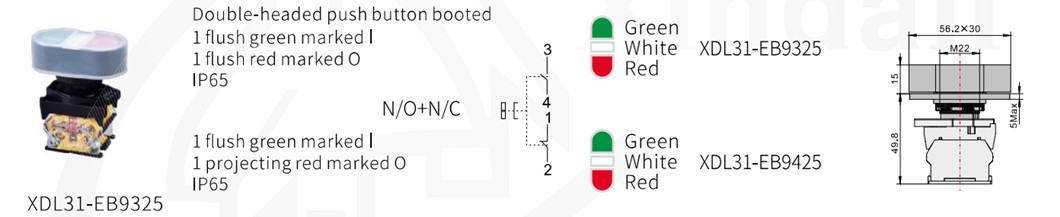

XDL31-EB9325 22mm Double Head Waterproof Cap Rubber Push Button Switches
Inquire NowDescription
The XDL31-EB9325 22mm Double Head Waterproof Cap Rubber Push Button Switches are designed for robust control of electrical circuits. Ideal for both AC and DC applications, these switches can handle AC voltages up to 660V and DC voltages below 400V. Crafted from durable zinc alloy and high-grade anti-flame plastic, they feature a special silver alloy contact, providing exceptional resistance to electrical erosion. These switches are perfect for various signaling purposes, including indicating, warning, and emergency signals in electrical appliances. Compliance with international standards such as GB/T14048.1 and IEC60947-5-1 ensures reliability and safety, while CE, IOS9001, ROHS, and UL certifications further validate their quality.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
These switches are engineered for versatility and durability, making them suitable for a wide range of applications in industrial and commercial settings. Ensure to install within the specified operational parameters for optimal performance.

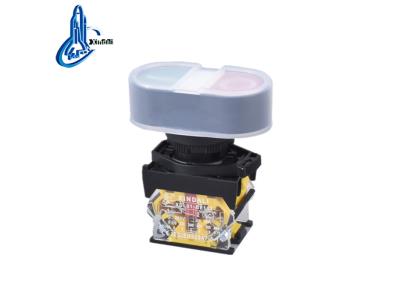

Product Show
