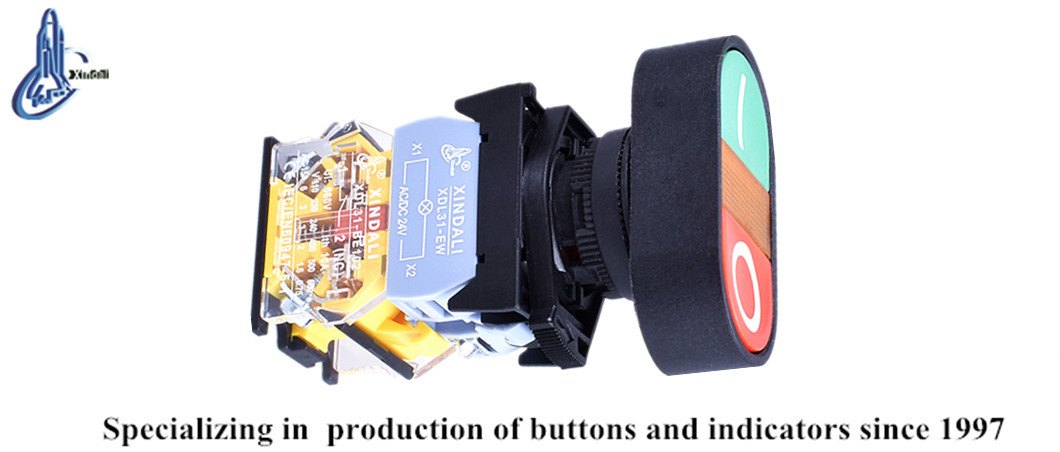

XDL31-EBW8365 Double Head Push Button with Lamp off-on Push Button Switch
Inquire NowDescription
The XDL31-EBW8365 Double Head Push Button with Lamp off-on Push Button Switch is a robust and versatile solution designed for controlling circuits in both AC and DC applications. Capable of handling AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this switch is ideal for signal control and interlocking purposes. Crafted with a durable zinc alloy body and high-grade anti-flame plastic, it ensures longevity and safety. The contact features a special silver alloy, providing exceptional resistance to electrical erosion. Additionally, the signal lamp series accommodates electrical circuits of AC up to 380V and DC below 380V, making it an excellent choice for indicating, warning, or emergency signals. The XDL31-EBW8365 is compliant with GB/T14048.1 and IEC60947-5-1 standards and holds multiple certifications including CE, ISO9001, ROHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | ClassⅢ |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 (push and pull type); Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |

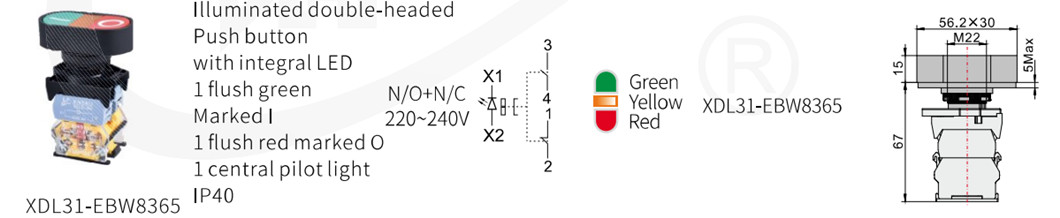

Product Show
