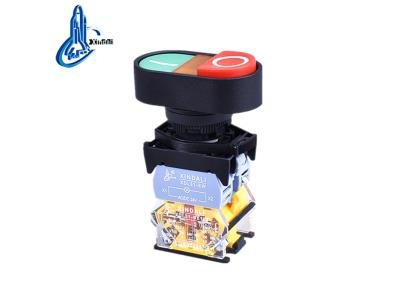

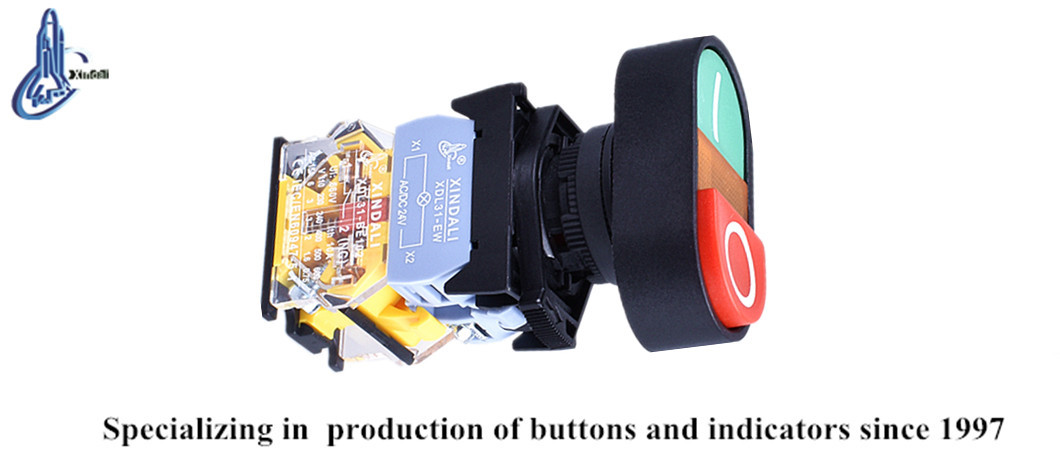

XDL31-EBW8465 on off Industrial Push Button Double Head Control Switch with Indicator
Inquire NowDescription
The XDL31-EBW8465 On/Off Industrial Push Button Double Head Control Switch with Indicator is an essential tool for efficient circuit control in industrial settings. Designed to manage AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, this robust push button switch excels in controlling signals and interlocking mechanisms. Crafted from durable zinc alloy and high-grade anti-flame plastic, it ensures a long-lasting performance. The switch features a special silver alloy contact for superior resistance to electrical erosion, making it ideal for a variety of applications including indicating signals, warning signals, and emergency alerts. Certified with GB/T14048.1 and IEC60947-5-1 standards, it meets rigorous safety requirements and is CE, ISO9001, ROHS, and UL certified for peace of mind.

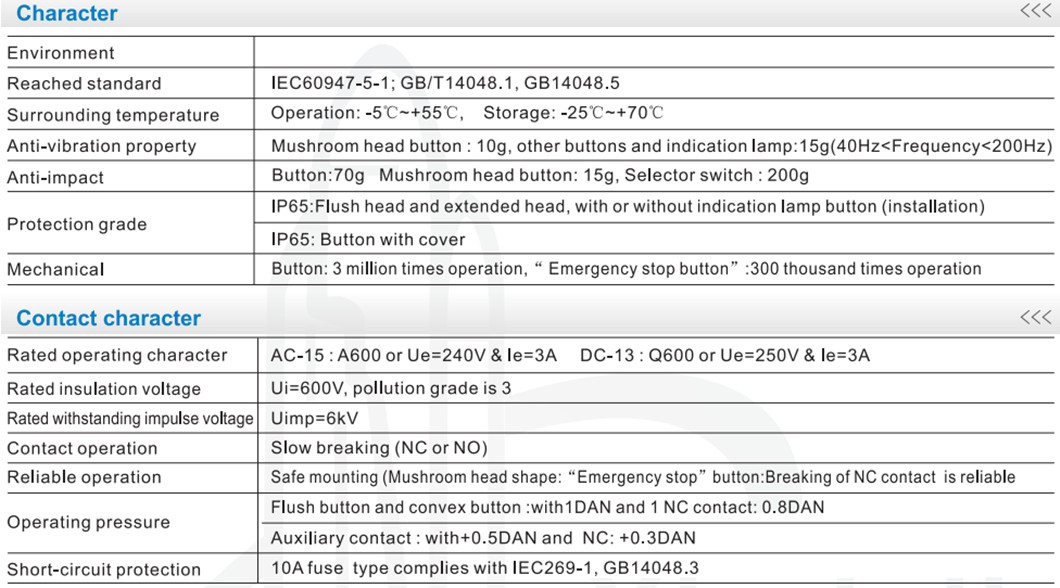

Specifications
| Feature | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency Button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

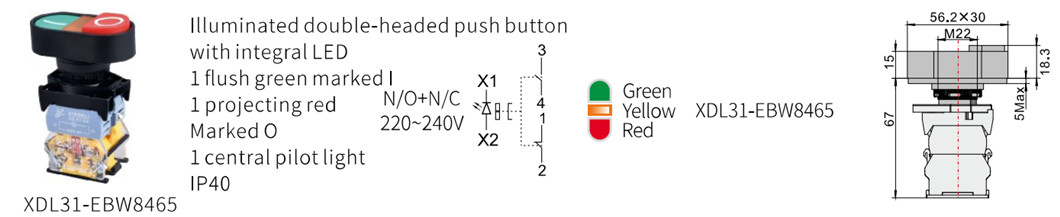

Product Show
