XDL31-EG33 Key Spring Return Push Button 2 Position Selector Switch
Inquire NowDescription
The XDL31-EG33 Key Spring Return Push Button 2 Position Selector Switch is an essential component for controlling electrical circuits. Designed for versatility, this push button switch operates effectively with AC voltages up to 660V/50Hz or 60Hz and DC voltages below 400V. It not only controls signals but also serves interlocking purposes. Crafted from durable zinc alloy and high-grade flame-retardant plastic, its contacts are made from a special silver alloy, ensuring high resistance to electrical erosion. This switch is suitable for a myriad of applications including indicating signals, warning signals, and emergency signals. All products meet stringent standards including GB/T14048.1 and IEC60947-5-1, and are certified CE, ISO9001, ROHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles Emergency Button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
For optimal performance, ensure proper installation and adherence to the specified operating conditions. This product is ideal for both professional and industrial applications, ensuring reliability and safety in electrical control systems.

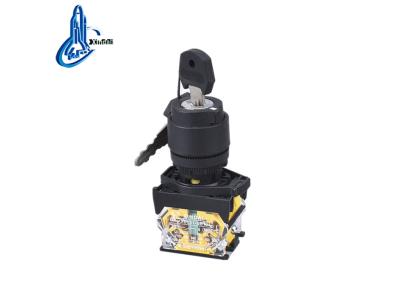

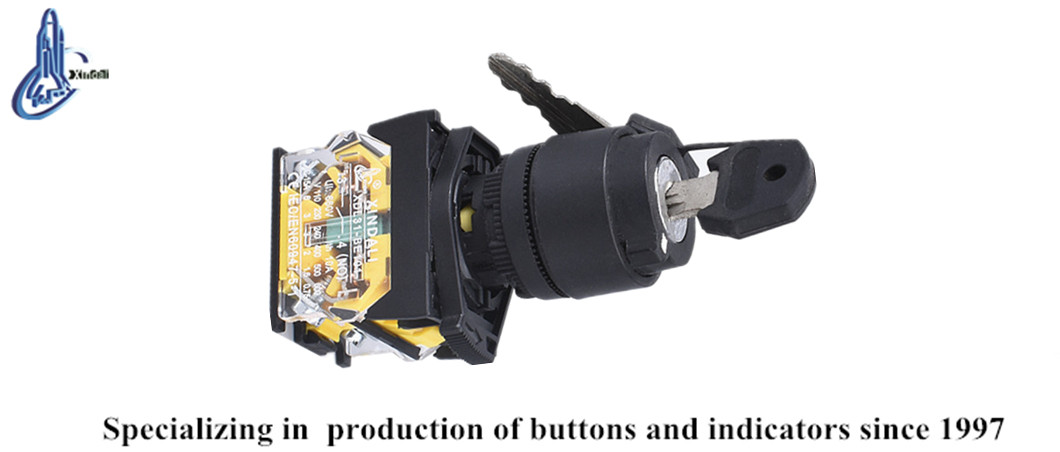

Product Show
