XDL31-EK2565 Plastic Position Indicator 3 Position Push Button Switch with LED Lights
Inquire NowDescription
The XDL31-EK2565 Plastic Position Indicator is a versatile 3 Position Push Button Switch designed for efficient control of electrical circuits. With capabilities to manage AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, this switch is perfect for signal control and interlocking applications. Crafted from a durable combination of zinc alloy and high-grade anti-flame plastic, it boasts a special silver alloy contact to resist electrical erosion. The integrated LED lights serve as clear indicators for various operational signals, including warnings and emergencies. Complying with international standards, this product is CE, ISO9001, ROHS, and UL certified, ensuring reliability and safety for all applications.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 Push and Pull type; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
The XDL31-EK2565 is ideal for use in various applications, including industrial control systems, where operational efficiency and safety are paramount. Its robust design ensures longevity and durability under challenging conditions.

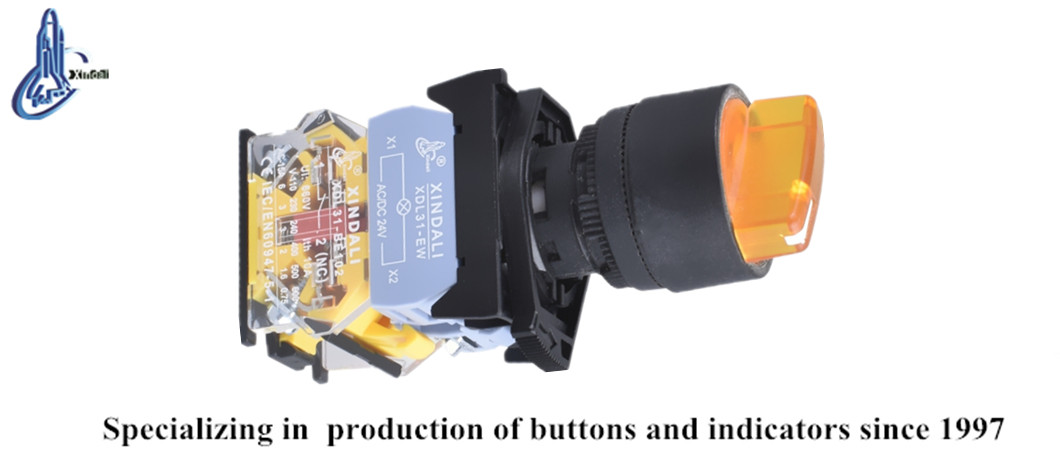

Product Show
