XDL31-EK3465 Plastic Position Indicator 3 Position Push Button Switch with LED Lights
Inquire NowDescription
The XDL31-EK3465 Plastic Position Indicator is a versatile 3-position push button switch equipped with LED lights, designed for efficient circuit control in various applications. It operates on AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, making it ideal for signal control and interlocking functions. Crafted from a robust combination of zinc alloy and high-grade anti-flame plastic, this switch features a special silver alloy contact that ensures exceptional resistance to electrical erosion. It is perfectly suited for use as indicating, warning, or emergency signals and complies with various international standards including GB/T14048.1 and IEC60947-5-1, as well as certifications like CE, ISO9001, RoHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Humidity | Operating and storage air relative humidity: 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
This switch is not only reliable but also built to last, ensuring a long mechanical life suited for various industrial environments. Ideal for professionals seeking durable and efficient control solutions.

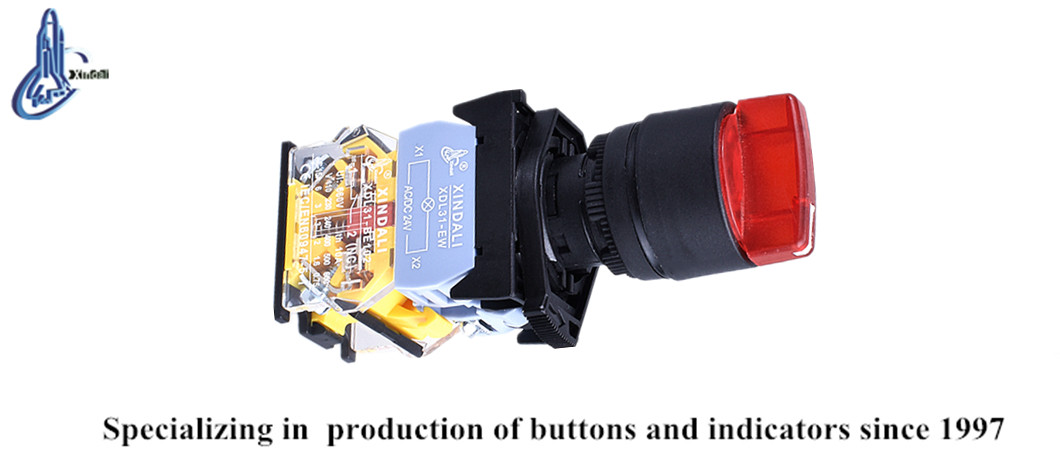

Product Show
