XDL31-EL35 Plastic Green Convex Head Push Button Waterproof Switch
Inquire NowDescription
The XDL31-EL35 Plastic Green Convex Head Push Button Waterproof Switch is an innovative and reliable solution for controlling electrical circuits efficiently. Designed to operate under both AC voltage of up to 660V at 50Hz or 60Hz and DC voltage below 400V, this switch is ideal for signaling and interlocking applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, it features a contact made from a special silver alloy, ensuring excellent resistance to electrical erosion. Perfectly suited for various electrical appliances, this push button can provide indicating, warning, and emergency signals, making it a versatile addition to any setup. The product meets stringent standards including GB/T14048.1 and IEC60947-5-1, and is certified with CE, ISO9001, RoHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 cycles, Emergency button: 30*10 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

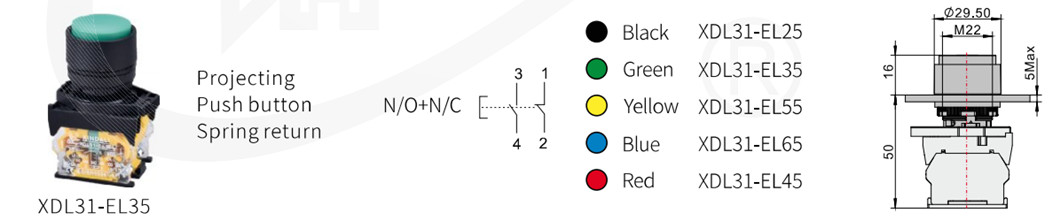

Product Show
