XDL31-EL4325 Red Electric Switch Symbol Spring Return Convex Push Button Switch
Inquire NowDescription
The XDL31-EL4325 Red Electric Switch Symbol Spring Return Convex Push Button Switch is a robust and versatile control component designed for a variety of electrical applications. This switch can handle AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, making it ideal for signal control and interlocking purposes. The body is constructed from durable zinc alloy and high-grade anti-flame plastic, while the contact utilizes a special silver alloy for superior resistance to electrical erosion. This switch is particularly well-suited for indicating, warning, or emergency signaling in electrical circuits, compliant with international standards such as GB/T14048.1 and IEC60947-5-1, and certified under CE, ISO9001, ROHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 operations; Emergency button: 30*10 operations |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

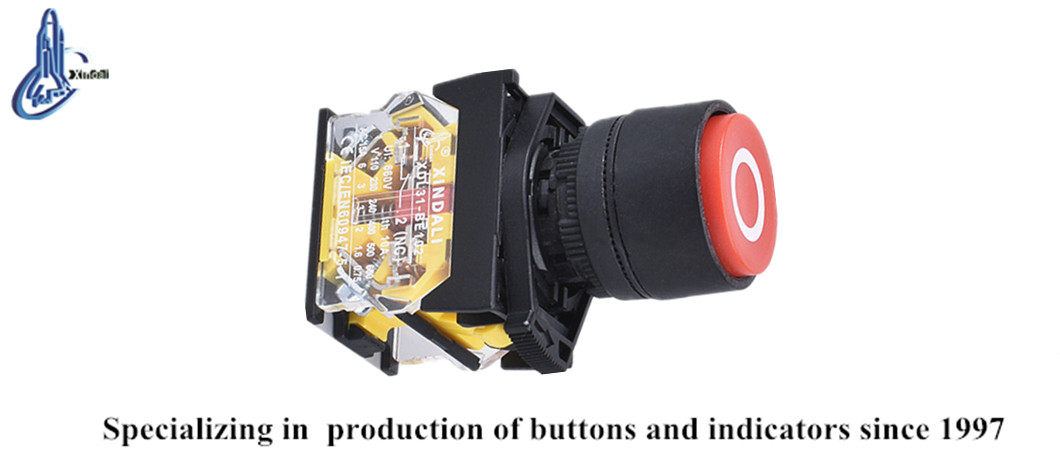

Product Show
