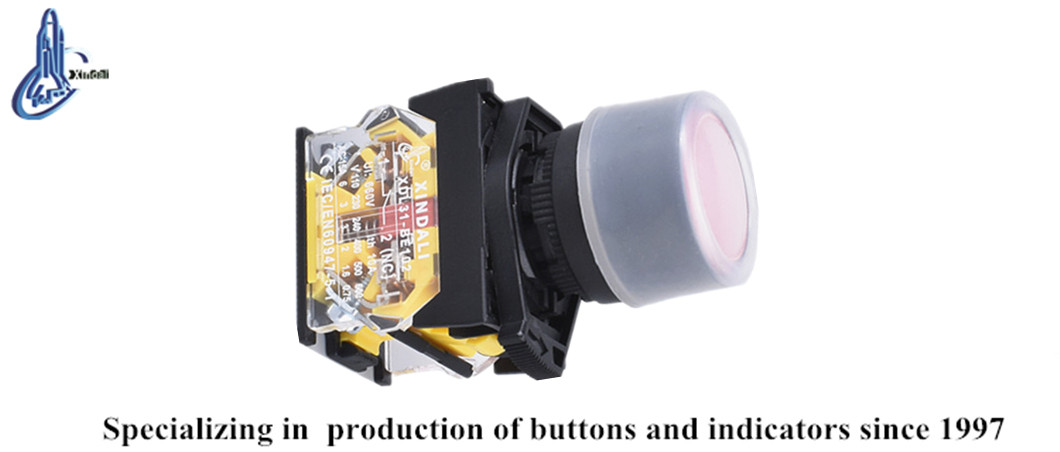

XDL31-EP45 Rubber Cap Cover IP65 Push Button Waterproof Switch
Inquire NowDescription
The XDL31-EP45 Rubber Cap Cover IP65 Push Button Waterproof Switch is designed for robust electrical control in various environments. This push button series is capable of handling AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, making it an ideal choice for controlling signals and interlocking functions. Crafted from a durable zinc alloy and high-grade anti-flame plastic, the push button features contacts made from a special silver alloy, ensuring superior resistance to electrical erosion. Additionally, it is suited for electrical appliances with an AC voltage up to 380V/50Hz and DC voltage below 380V, serving as a reliable signaling device for indicators, warnings, and emergencies. The product meets stringent standards including GB/T14048.1 and IEC60947-5-1, and boasts certifications such as CE, ISO9001, ROSH, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃~+55℃ Storage: -25℃~+70℃ |
| Operating and Storage Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Push button: 300*10 push and pull type Emergency button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |

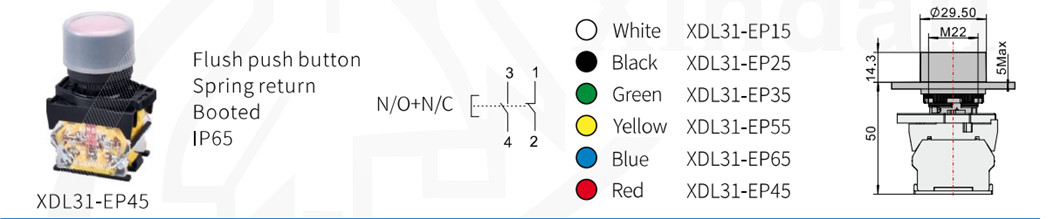

Product Show
