XDL31-ET45 Mushroom Head Lockout Emergency Stop Push Button Switch
Inquire NowDescription
The XDL31-ET45 Mushroom Head Lockout Emergency Stop Push Button Switch is a robust and reliable safety device designed for controlling AC voltages up to 660V and DC voltages below 400V. This push button series is essential for signal control and interlocking purposes in various industrial applications. Crafted with a durable zinc alloy body and high-quality anti-flame plastic, it ensures longevity and safety. The contacts are made from a special silver alloy, enhancing resistance to electrical erosion.
Ideal for use as an emergency stop mechanism, indicating signals, and warning signals, this push button switch meets stringent industry standards, including GB/T14048.1 and IEC60947-5-1. The product is CE, ISO9001, ROHS, and UL certified, ensuring its reliability and safety in critical operations.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating temperature: -5℃ to +55℃, Storage temperature: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10, Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
This emergency stop push button switch is designed for durability and high performance in demanding environments. Ensure regular inspections and maintenance for optimal functionality.

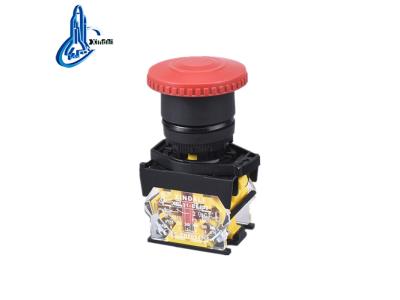

Product Show
