XDL31-EV64 Flash Light Switch LED Lamp Push Button Switch
Inquire NowDescription
The XDL31-EV64 Flash Light Switch LED Lamp Push Button Switch is an essential component for controlling electrical circuits. Designed to handle AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, this versatile switch is ideal for various applications including signal control and interlocking systems. The body is constructed with durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The special silver alloy contacts provide excellent resistance to electrical erosion, making it suitable for a wide range of environments. The accompanying signal lamp series can operate on electrical appliances with AC voltage up to 380V at 50Hz and DC voltage below 380V, perfect for indicating, warning, or emergency signals. All products confirm to GB/T14048.1 and IEC60947-5-1 standards and boast CE, ISO9001, ROHS, and UL certifications.

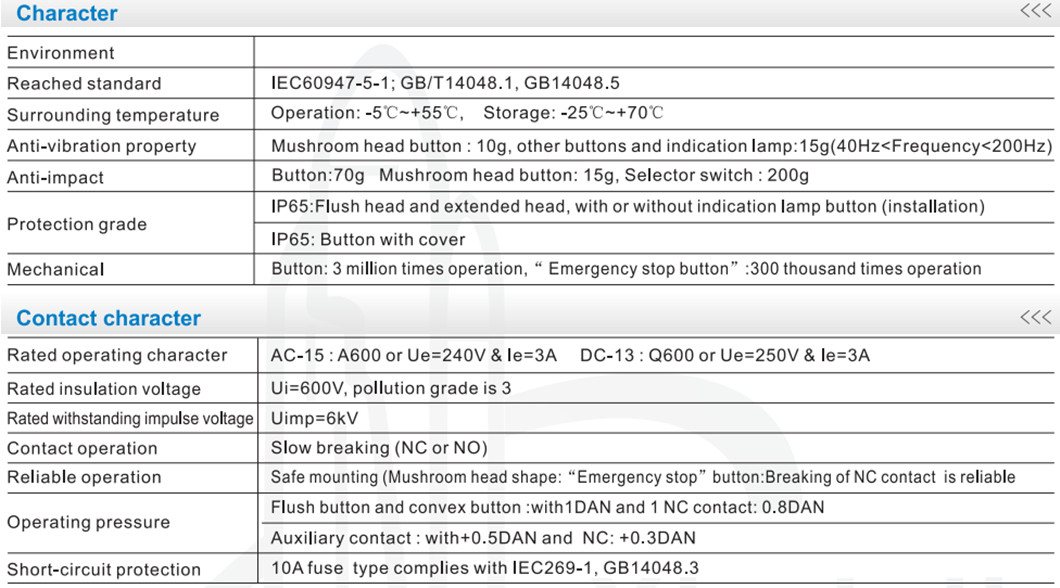

Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Operating Temperature | -5℃ to +55℃ |
| Storage Temperature | -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Class | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 push and pull type Emergency button: 30*10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Product Show
