XDL31-EWA3465 Plastic Red LED Signal Indicator Light Push Button Switch
Inquire NowDescription
The XDL31-EWA3465 Plastic Red LED Signal Indicator Light Push Button Switch is a high-performance device designed for controlling AC and DC circuits with reliability and precision. With its robust zinc alloy construction and high-grade flame-retardant plastic, this push button switch is engineered to withstand harsh conditions. It operates effectively in AC voltage up to 660V and DC voltage below 400V, making it suitable for a variety of applications including signaling, interlocking, and emergency alerts. The indicator light can illuminate circuits of AC voltage up to 380V and DC voltage below 380V, making it an ideal choice for warning and emergency signals. This product complies with international standards such as GB/T14048.1 and IEC60947-5-1, and is certified to CE, ISO9001, RoHS, and UL standards, ensuring safety and quality.
Specifications
| Feature | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 cycles, Emergency button: 30*10 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

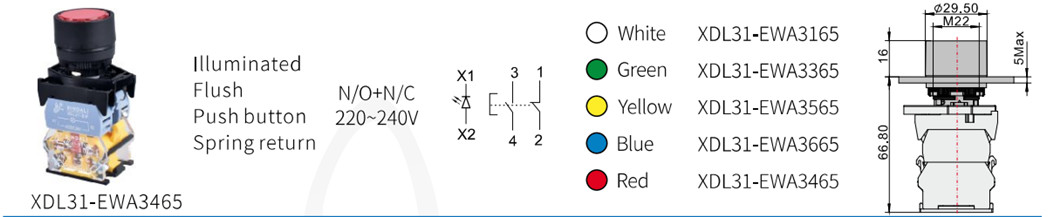

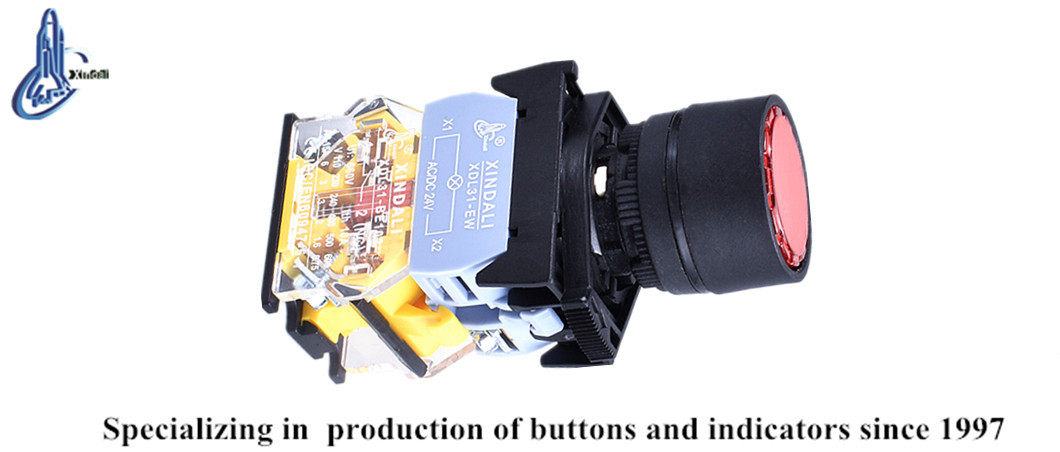

Product Show
