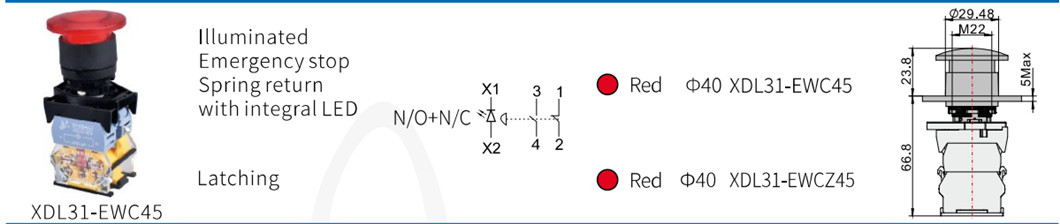

XDL31-EWC45 LED Bulb Red Indicator Light Mushroom Head Pushbutton Switch
Inquire NowDescription
The XDL31-EWC45 LED Bulb Red Indicator Light Mushroom Head Pushbutton Switch is a highly functional component designed for controlling circuits with AC voltage up to 660V and DC voltage below 400V. This robust push button series is ideal for applications requiring signal control and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features a special silver alloy contact that offers exceptional resistance to electrical erosion. Its versatility makes it perfect for indicating signals, warning signals, and emergency signals in various electrical appliances. The product adheres to GB/T14048.1 and IEC60947-5-1 standards and is certified by CE, ISO9001, ROHS, and UL.
Specifications
| Basic Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
- Ideal for applications requiring reliable signaling and control.
- Suitable for both indoor and outdoor installations due to its high protection grade.

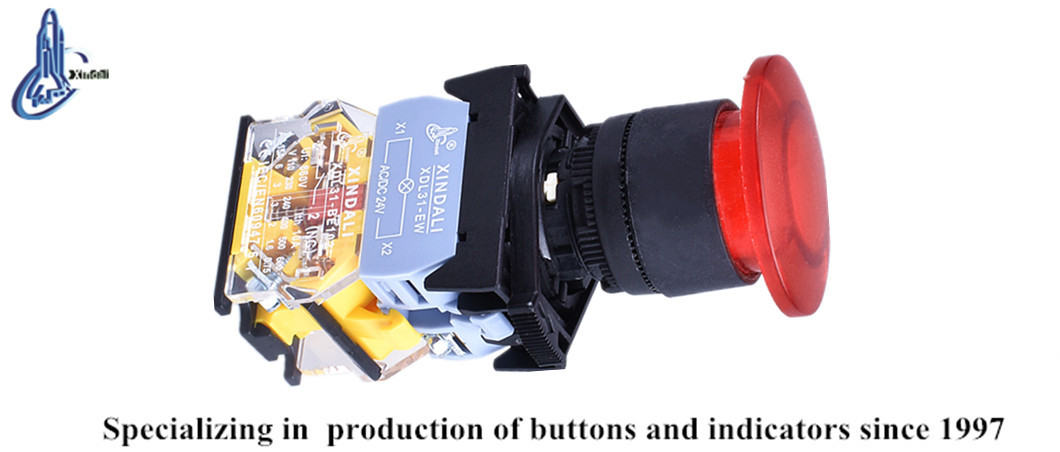

Product Show
