XDL31-EWL3465 Plastic Red Convex Head Electrical Pushbutton Light Switch
Inquire NowDescription
The XDL31-EWL3465 Plastic Red Convex Head Electrical Pushbutton Light Switch is an essential component for controlling electrical circuits. Designed to handle AC voltages up to 660V/AC50Hz or 60Hz and DC voltages below 400V, this switch is perfect for signal control and interlocking purposes. Its body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The contacts are made from a special silver alloy, providing excellent resistance to electrical erosion.
This switch is ideal for use in various applications, including indicating, warning, and emergency signals. Compliance with GB/T14048.1 and IEC60947-5-1 means it meets rigorous international standards, while certifications such as CE, ISO9001, ROHS, and UL further assure quality and safety in operation.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1: GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating & Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10, Emergency Button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Ideal for use in controlling various electrical circuits.
- Meets all relevant international safety standards.

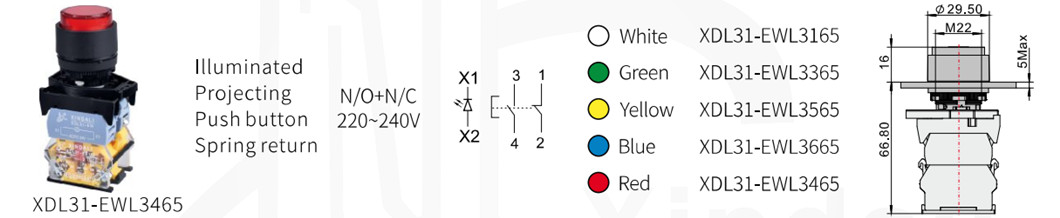

Product Show
