XDL32-CA35 Green Flush Head Electrical Spring Return Push Button Switch
Inquire NowDescription
The XDL32-CA35 Green Flush Head Electrical Spring Return Push Button Switch is an essential component for controlling electrical circuits. Designed to handle AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V, this switch serves both signal control and interlocking purposes. Its robust construction includes a main body made from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety in operation. The contact features a special silver alloy, providing superior resistance to electrical erosion.
This switch is ideal for various applications, including indicating signals, warning signals, and emergency signals, making it versatile for use in different electrical appliances and circuits. Compliance with international standards such as GB/T14048.1 and IEC60947-5-1, along with certifications like CE, ISO9001, RoHS, and UL, guarantees its reliability and safety in diverse environments.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

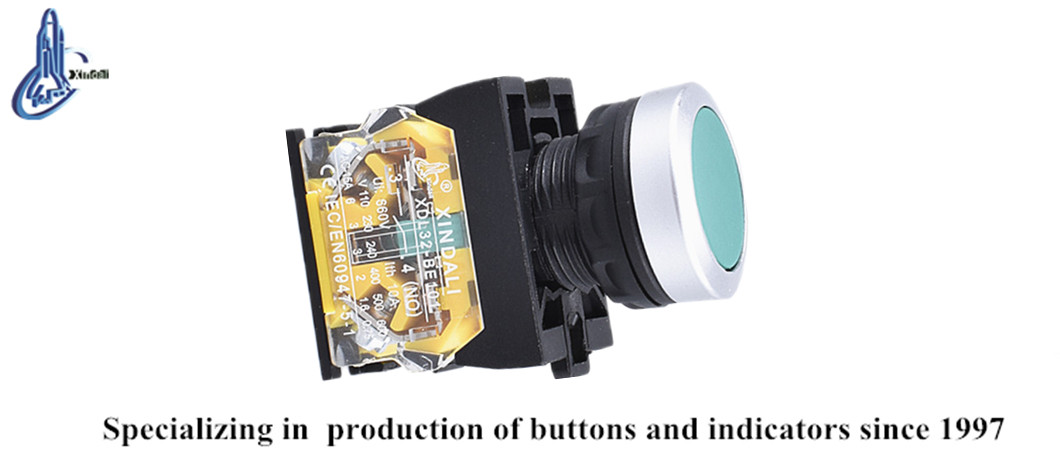

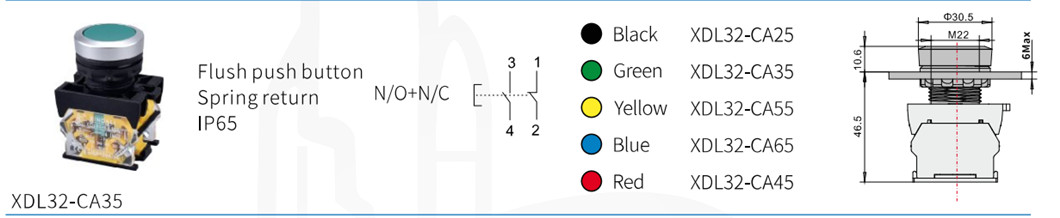

Product Show
