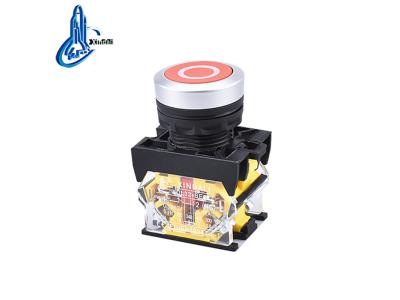

XDL32-CA4325 Metal Symbol Industrial Electric Red Flush Pushbutton Switch
Inquire NowDescription
The XDL32-CA4325 Metal Symbol Industrial Electric Red Flush Pushbutton Switch is a robust solution designed for controlling electrical circuits with AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V. This versatile push button is perfect for signal control and interlocking applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, it features contacts made from a special silver alloy to resist electrical erosion. The accompanying signal lamp is suitable for electrical circuits with AC voltages up to 380V and DC voltages below 380V, making it ideal for use as an indicating, warning, or emergency signal. Notably, the product meets various international standards, including GB/T14048.1 and IEC60947-5-1, and is certified with CE, ISO9001, ROHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃~+55℃, Storage: -25℃~+70℃ |
| Humidity | Operating and storage air relative humidity: 35~85%RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation type | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
For optimal performance, ensure the switch is installed in a suitable environment, adhering to the specified ambient temperature and humidity levels.

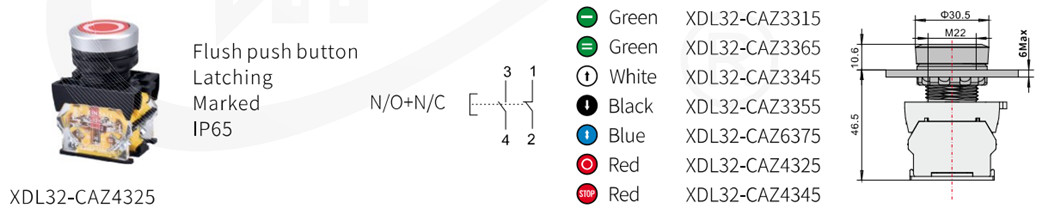

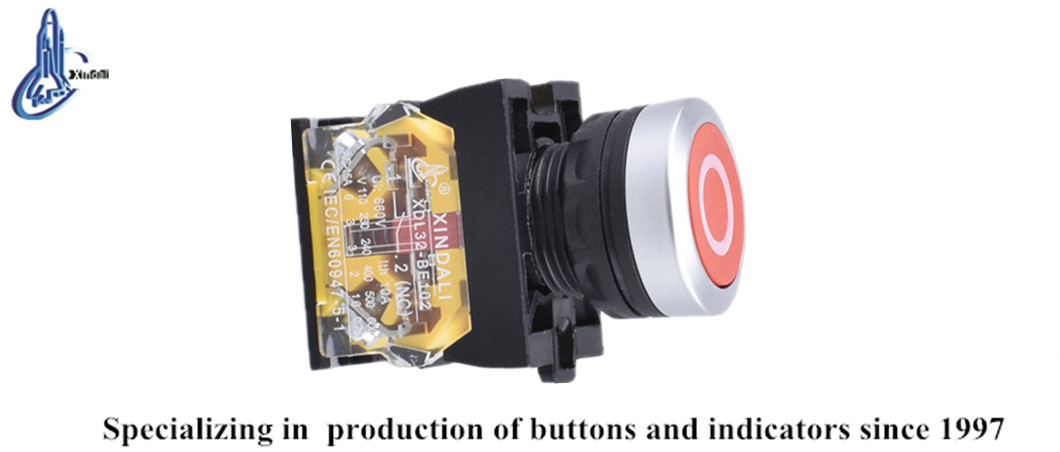

Product Show
