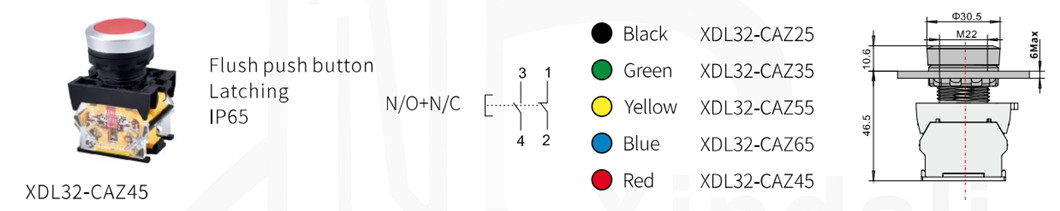

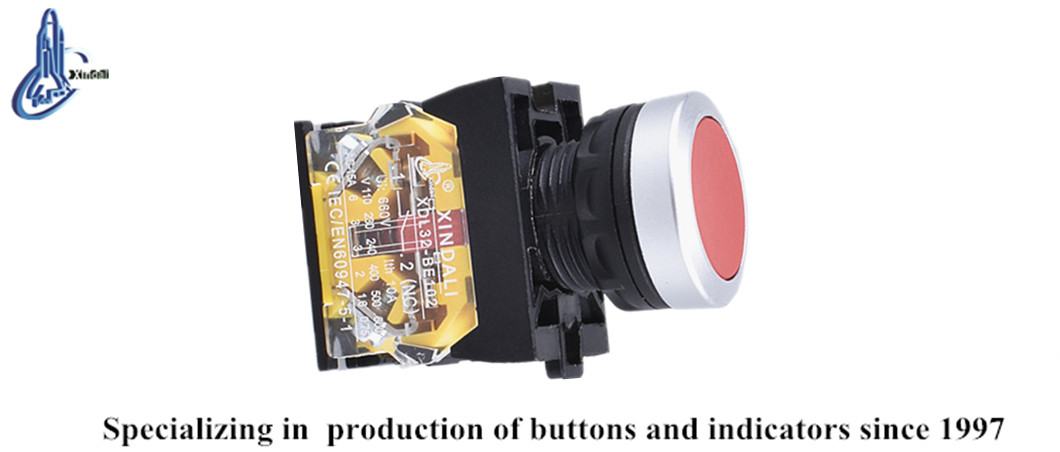

XDL32-CA45 Xindali The Elevator Waterproof Push Switch with Red Button
Inquire NowDescription
The XDL32-CA45 Xindali Elevator Waterproof Push Switch with Red Button is a robust and reliable component designed for controlling circuits in various applications. Capable of handling AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this push switch is ideal for controlling signals and interlocking purposes. Its construction features a durable zinc alloy body paired with high-grade anti-flame plastic, while the contacts are made with special silver alloy for enhanced resistance to electrical erosion. This switch is not only functional but also optimized for electrical appliances, making it suitable for warning signals, emergency signals, and more. All Xindali products meet international standards and are certified for safety and quality.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (Max: 1.2 Nm) |
Additional Information
- Ideal for use in elevators and various industrial applications.
- Certified for CE, ISO 9001, RoHS, and UL standards.
- Features a bright red button for high visibility in emergency situations.
