XDL32-CB8325 on off PC Industrial 22mm Double Head Push Button Switch
Inquire NowDescription
The XDL32-CB8325 On/Off PC Industrial 22mm Double Head Push Button Switch is designed for robust control of electrical circuits. This versatile switch operates under AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, making it ideal for various industrial applications. Its primary function is to control signals and interlocks effectively. Crafted from durable zinc alloy and high-grade anti-flame plastic, this switch features contacts made from a special silver alloy that ensures exceptional resistance against electrical erosion. The integrated signal lamp accommodates AC voltage up to 380V (50Hz) and DC voltage below 380V, serving as an excellent choice for indicating, warning, and emergency signals. This product meets international standards, including GB/T14048.1 and IEC60947-5-1, and boasts multiple certifications such as CE, ISO9001, RoHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information

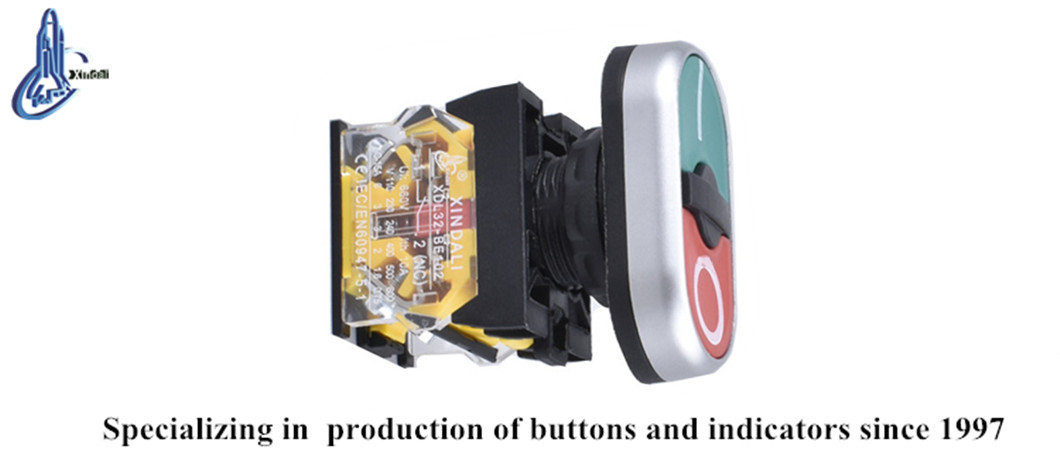

Product Show
