XDL32-CB8425 Double Head Control Push Button Switch Turn on and off Switch
Inquire NowDescription
The XDL32-CB8425 Double Head Control Push Button Switch is designed for seamless control of AC and DC voltage circuits. Capable of handling AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this switch is ideal for controlling signals and interlocking applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, it features contacts made from a special silver alloy for superior anti-electrical erosion. This product also includes a signal lamp series, suitable for electrical appliances operating at AC voltages up to 380V and DC voltages below 380V, making it perfect for indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 and are CE, ISO9001, ROHS, and UL certified.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

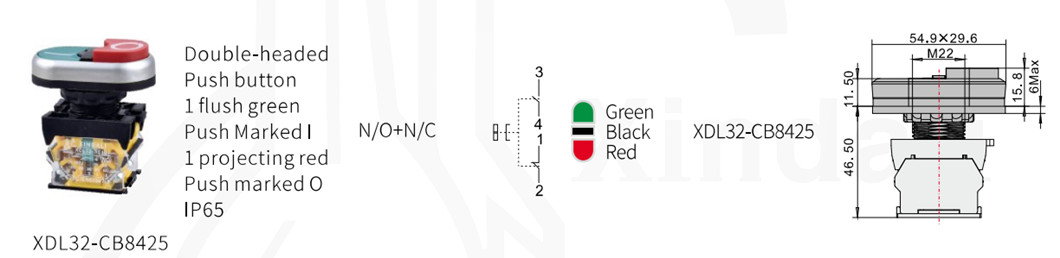

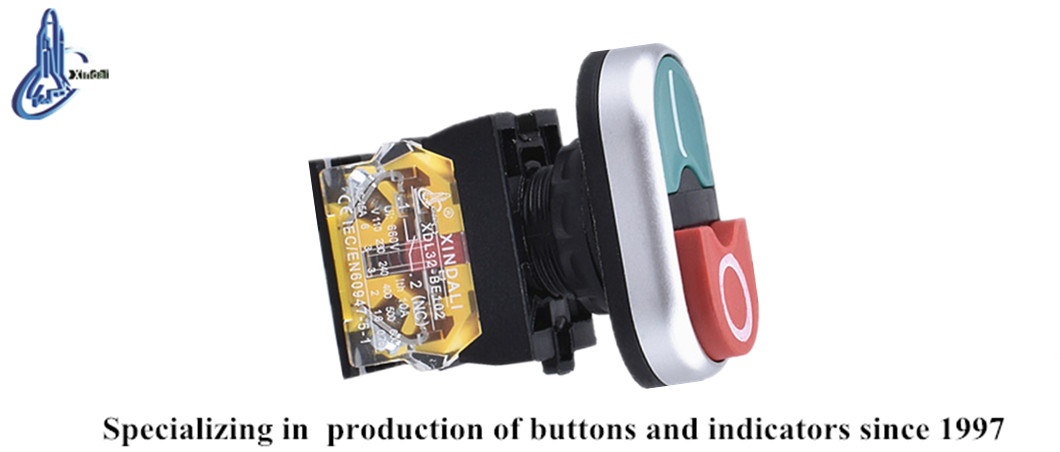

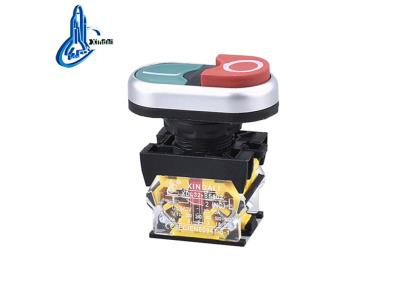

Product Show
