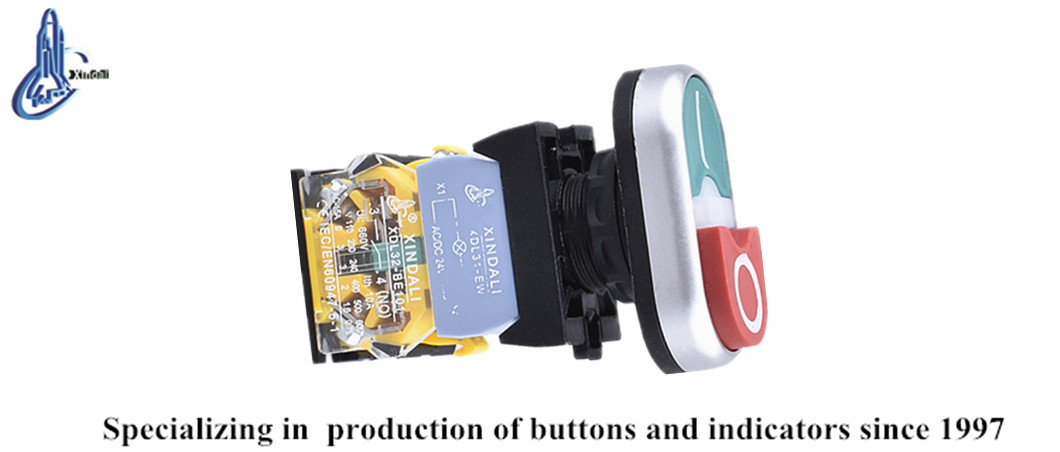

XDL32-CBW8465 Double Head Light Indicator Industrial Push Button Switch Get Latest Price
Inquire NowDescription
The XDL32-CBW8465 Double Head Light Indicator Industrial Push Button Switch is a robust and reliable component designed for controlling circuits with AC voltages up to 660V/AC50Hz or 60Hz and DC voltages below 400V. This switch is ideal for signal control and interlocking applications. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features contacts made from special silver alloy to ensure high resistance to electrical erosion. The signal lamp series is effective for circuits with AC voltages up to 380V/50Hz and DC voltages below 380V, making it perfect for indicating signals, warning signals, and emergency signaling. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are certified CE, ISO9001, ROHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating temperature: -5℃~+55℃, Storage temperature: -25℃~+70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade |
Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
For optimal performance, ensure the installation environment meets the specified temperature and humidity conditions. Regular checks for wear and tear are recommended to maintain functionality.

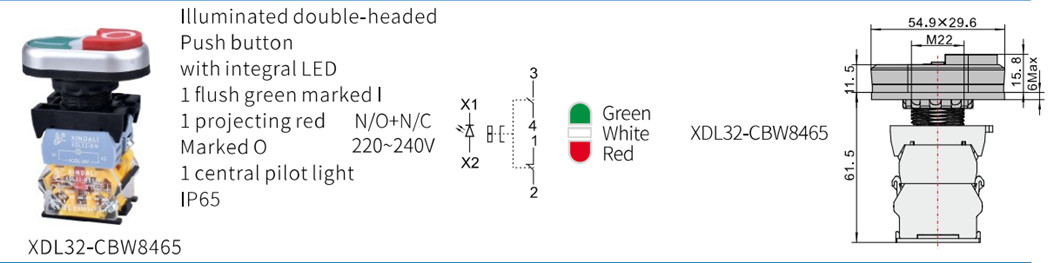

Product Show
