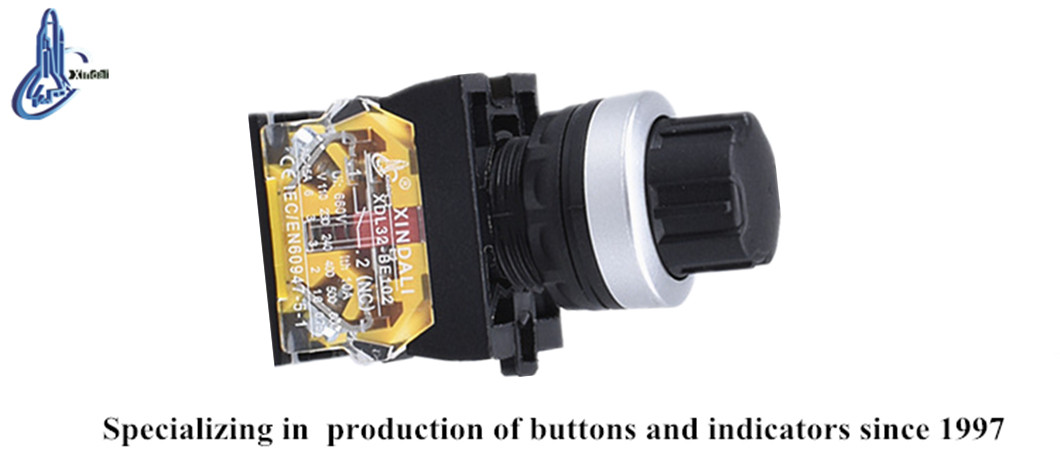

XDL32-CDF35 Rotary Selector Switches Industrial Glock Selector Push Button Switch
Inquire NowDescription
The XDL32-CDF35 Rotary Selector Switch is a robust and versatile industrial switch designed for controlling circuits of AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V. Ideal for interlocking and signal control applications, its main body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring reliability in demanding environments.
This selector switch features contacts made from a special silver alloy, providing exceptional resistance to electrical erosion. Additionally, the integrated signal lamp series is suitable for electrical appliances with AC voltage up to 380V and DC voltage below 380V, making it perfect for indicating, warning, and emergency signals. The XDL32-CDF35 complies with GB/T14048.1 and IEC60947-5-1 standards, ensuring that all products are CE, ISO9001, RoHS, and UL certified for quality assurance.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 (push and pull type) Emergency Button: 30*10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

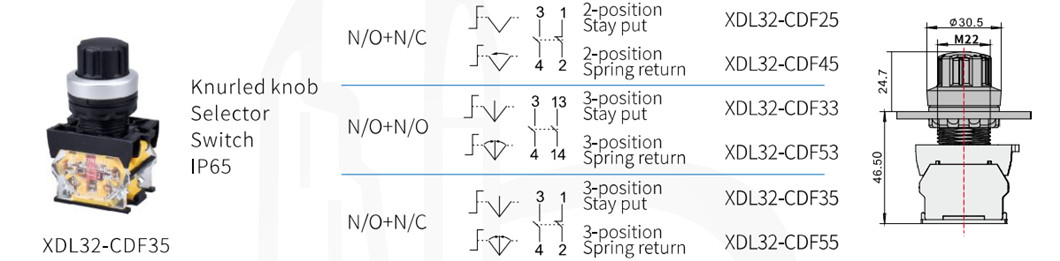

Product Show
